ID: 1035217
Produkto kodas: DH-CS4010-8ET-110
Sandėlyje yra 4 vnt.
Garantija: 3 metų

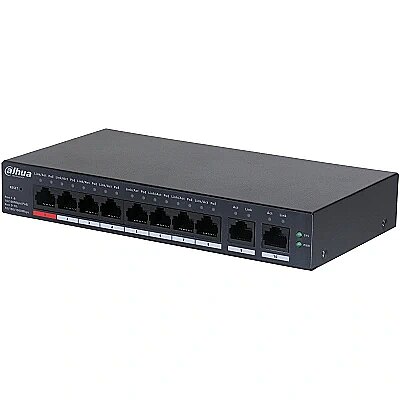

Dahua CS4010-8ET-110 PoE ports 8
Išsamesnė specifikacija
10/100/1000M LAN prievadai - 2
10/100M LAN prievadai - 8
Aprašymas - "10-Port Cloud Managed Desktop Switch with 8-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."
Certificates - Compliance certificates - CE
CnCode CnCode - 85176200
Dizainas - Iš naujo nustatyti mygtuką - Taip
Dizainas - Korpuso medžiaga - Metalas
Dizainas - LED indikatoriai - Taip
Dizainas - montavimas į stovą - Ne
Dizainas - Produkto spalva - Juoda
Duomenų perdavimas - Jumbo kadrai - 9216
Duomenų perdavimas - Jumbo rėmų palaikymas - Taip
Duomenų perdavimas - MAC adresų lentelė - 8000 įrašų
Duomenų perdavimas - Paketų buferinė atmintis - 0.5 MB
Duomenų perdavimas - Perjungimo pajėgumas - 5.6 Gbit/s
Duomenų perdavimas - persiuntimo sparta - 4,17 Mpps
Eksploatavimo sąlygos - Darbinė santykinė drėgmė (H-H) - 5 - 95%
Eksploatavimo sąlygos - Darbinė temperatūra (T-T) - -10 - 55 °C
Eksploatavimo sąlygos - Laikymo temperatūra (T-T) - -40 - 70 °C
Eksploatavimo sąlygos - Sandėliavimo santykinė drėgmė (H-H) - 5 - 95%
Forwarding rate - 4,17 Mpps
Garantija - 36 mėnesiai
GarantijaInformacija -
GTIN - 6923172571168
IEEE 802.3 tinklo standartas - Taip
IEEE 802.3ab tinklo standartas - Taip
IEEE 802.3u tinklo standartas - Taip
IEEE 802.3x tinklo standartas - Taip
Jungiklio tipas - L2
Kategorija - Tinklo komutatoriai
Kategorijos kodas - SWI
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W.Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
LongProductName - 10-Port Cloud Managed Desktop Switch with 8-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)
Maitinimas - Energijos suvartojimas (maks.) - 110 W
Maitinimas - Maitinimo šaltinis - DC/PoE
Maitinimas - maitinimo šaltinis yra komplekte - Taip
Maitinimas - nuolatinės srovės įėjimo įtampa - 54 V
Maitinimas - rezervinio maitinimo šaltinio (RPS) palaikymas - Taip
Maitinimas - Įėjimo srovė - 2.22 A
Maitinimas per Ethernet (PoE) - Taip
Maitinimas per Ethernet (PoE) - Maitinimo per Ethernet (PoE) prievadų kiekis - 8
Maitinimo šaltinis - Išorinis
Matmenys - 190 × 106 × 30 mm
Modelio pavadinimas - CS4010-8ET-110
Pakuotės duomenys - Pakuotės aukštis - 87 mm
Pakuotės duomenys - Pakuotės gylis - 244 mm
Pakuotės duomenys - Pakuotės plotis - 256 mm
Pakuotės duomenys - Pakuotės svoris - 1.25 kg
Pardavėjo interneto svetainė - www.dahuasecurity.com/ceen/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Pavadinimas - Dahua Technology DH-CS4010-8ET-110 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Perjungimo pajėgumas - 5,6 Gbps
Pilnas aprašymas Linija - Tipas L2|Stogmeninis/pedalinis|8x10/100M|2x10/100/1000M|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE prievadų 8|Perjungimo sparta 5,6 Gb/s|Persiuntimo sparta 4,17 Mpps|Elektros maitinimas Išorinis|Matmenys 190 × 106 × 30 mm|Produkto neto svoris 0,5 kg
Pirminių prievadų skaičius - 8
PoE prievadai - 8
Prekės ženklas - "Dahua" technologija
Prekės ženklo dalies kodas - DH-CS4010-8ET-110
Prievadai ir sąsajos - Fast Ethernet (variniai) prievadai kiekis - 8
Prievadai ir sąsajos - Gigabit Ethernet (variniai) prievadai kiekis - 2
Prievadai ir sąsajos - Pagrindiniai komutavimo RJ-45 Ethernet prievadai kiekis - 8
Prievadai ir sąsajos - Pagrindinis komutavimo RJ-45 Ethernet prievadų tipas - Fast Ethernet (10/100)
Produkto grynasis svoris - 0.5 kg
Produkto pavadinimas - DH-CS4010-8ET-110
Saugumas - DHCP funkcijos - DHCP klientas
ShortSummaryDescription - Dahua Technology DH-CS4010-8ET-110, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
Siuntimo dėžės aukštis Siuntimo/pakavimo dėžės matmenys - 9 cm
Siuntimo dėžės gylis Siuntimo/pakavimo dėžės matmenys - 25 cm
Siuntimo dėžės plotis Siuntimo/pakavimo dėžės matmenys - 24.5 cm
Siuntimo dėžės svoris Siuntimo/pakavimo dėžės matmenys - 1.25 kg
Stalinio kompiuterio / stovo montavimo tipas - Taip
Svoris ir matmenys - Aukštis - 30 mm
Svoris ir matmenys - Gylis - 106 mm
Svoris ir matmenys - Plotis - 190 mm
Svoris ir matmenys - Svoris - 500 g
Tinklas - 10G palaikymas - Ne
Tinklas - Ethernet LAN duomenų perdavimo sparta - 10,100,1000 Mbit/s
Tinklas - srauto valdymo palaikymas - Taip
Tinklas - Tinklo standartai - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Tinklas - varinių eterneto kabelių technologija - 10BASE-T, 100BASE-TX, 1000BASE-T
Tinklas - Virtualiojo LAN funkcijos - VLAN pagal prievadus
Tinklas - VLAN palaikymas - Taip
Tinklas - VLAN skaičius - 32
Tvarumas - Tvarumo laikymasis - Taip
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Valdymo funkcijos - debesijos valdomas - Taip
Valdymo funkcijos - Komutatoriaus lygmuo - L2
Valdymo funkcijos - Komutatoriaus tipas - Managed
Valdymo funkcijos - Paslaugų kokybės (QoS) palaikymas - Taip
Valdymo funkcijos - Valdymas internetu - Taip
Vienetai pristatymo dėžėje - 1
Vienetas Apskaičiuotas svoris - 1.25 kg
Vienetas Apskaičiuotas tūris - 0,005513 kubinio metro
Vieneto dėžės aukštis - 0.09
Vieneto dėžės ilgis - 0.25
Vieneto dėžės plotis - 0.245
10/100M LAN prievadai - 8
Aprašymas - "10-Port Cloud Managed Desktop Switch with 8-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."
Certificates - Compliance certificates - CE
CnCode CnCode - 85176200
Dizainas - Iš naujo nustatyti mygtuką - Taip
Dizainas - Korpuso medžiaga - Metalas
Dizainas - LED indikatoriai - Taip
Dizainas - montavimas į stovą - Ne
Dizainas - Produkto spalva - Juoda
Duomenų perdavimas - Jumbo kadrai - 9216
Duomenų perdavimas - Jumbo rėmų palaikymas - Taip
Duomenų perdavimas - MAC adresų lentelė - 8000 įrašų
Duomenų perdavimas - Paketų buferinė atmintis - 0.5 MB
Duomenų perdavimas - Perjungimo pajėgumas - 5.6 Gbit/s
Duomenų perdavimas - persiuntimo sparta - 4,17 Mpps
Eksploatavimo sąlygos - Darbinė santykinė drėgmė (H-H) - 5 - 95%
Eksploatavimo sąlygos - Darbinė temperatūra (T-T) - -10 - 55 °C
Eksploatavimo sąlygos - Laikymo temperatūra (T-T) - -40 - 70 °C
Eksploatavimo sąlygos - Sandėliavimo santykinė drėgmė (H-H) - 5 - 95%
Forwarding rate - 4,17 Mpps
Garantija - 36 mėnesiai
GarantijaInformacija -
GTIN - 6923172571168
IEEE 802.3 tinklo standartas - Taip
IEEE 802.3ab tinklo standartas - Taip
IEEE 802.3u tinklo standartas - Taip
IEEE 802.3x tinklo standartas - Taip
Jungiklio tipas - L2
Kategorija - Tinklo komutatoriai
Kategorijos kodas - SWI
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W.Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
LongProductName - 10-Port Cloud Managed Desktop Switch with 8-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)
Maitinimas - Energijos suvartojimas (maks.) - 110 W
Maitinimas - Maitinimo šaltinis - DC/PoE
Maitinimas - maitinimo šaltinis yra komplekte - Taip
Maitinimas - nuolatinės srovės įėjimo įtampa - 54 V
Maitinimas - rezervinio maitinimo šaltinio (RPS) palaikymas - Taip
Maitinimas - Įėjimo srovė - 2.22 A
Maitinimas per Ethernet (PoE) - Taip
Maitinimas per Ethernet (PoE) - Maitinimo per Ethernet (PoE) prievadų kiekis - 8
Maitinimo šaltinis - Išorinis
Matmenys - 190 × 106 × 30 mm
Modelio pavadinimas - CS4010-8ET-110
Pakuotės duomenys - Pakuotės aukštis - 87 mm
Pakuotės duomenys - Pakuotės gylis - 244 mm
Pakuotės duomenys - Pakuotės plotis - 256 mm
Pakuotės duomenys - Pakuotės svoris - 1.25 kg
Pardavėjo interneto svetainė - www.dahuasecurity.com/ceen/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Pavadinimas - Dahua Technology DH-CS4010-8ET-110 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Perjungimo pajėgumas - 5,6 Gbps
Pilnas aprašymas Linija - Tipas L2|Stogmeninis/pedalinis|8x10/100M|2x10/100/1000M|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE prievadų 8|Perjungimo sparta 5,6 Gb/s|Persiuntimo sparta 4,17 Mpps|Elektros maitinimas Išorinis|Matmenys 190 × 106 × 30 mm|Produkto neto svoris 0,5 kg
Pirminių prievadų skaičius - 8
PoE prievadai - 8
Prekės ženklas - "Dahua" technologija
Prekės ženklo dalies kodas - DH-CS4010-8ET-110
Prievadai ir sąsajos - Fast Ethernet (variniai) prievadai kiekis - 8
Prievadai ir sąsajos - Gigabit Ethernet (variniai) prievadai kiekis - 2
Prievadai ir sąsajos - Pagrindiniai komutavimo RJ-45 Ethernet prievadai kiekis - 8
Prievadai ir sąsajos - Pagrindinis komutavimo RJ-45 Ethernet prievadų tipas - Fast Ethernet (10/100)
Produkto grynasis svoris - 0.5 kg
Produkto pavadinimas - DH-CS4010-8ET-110
Saugumas - DHCP funkcijos - DHCP klientas
ShortSummaryDescription - Dahua Technology DH-CS4010-8ET-110, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
Siuntimo dėžės aukštis Siuntimo/pakavimo dėžės matmenys - 9 cm
Siuntimo dėžės gylis Siuntimo/pakavimo dėžės matmenys - 25 cm
Siuntimo dėžės plotis Siuntimo/pakavimo dėžės matmenys - 24.5 cm
Siuntimo dėžės svoris Siuntimo/pakavimo dėžės matmenys - 1.25 kg
Stalinio kompiuterio / stovo montavimo tipas - Taip
Svoris ir matmenys - Aukštis - 30 mm
Svoris ir matmenys - Gylis - 106 mm
Svoris ir matmenys - Plotis - 190 mm
Svoris ir matmenys - Svoris - 500 g
Tinklas - 10G palaikymas - Ne
Tinklas - Ethernet LAN duomenų perdavimo sparta - 10,100,1000 Mbit/s
Tinklas - srauto valdymo palaikymas - Taip
Tinklas - Tinklo standartai - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Tinklas - varinių eterneto kabelių technologija - 10BASE-T, 100BASE-TX, 1000BASE-T
Tinklas - Virtualiojo LAN funkcijos - VLAN pagal prievadus
Tinklas - VLAN palaikymas - Taip
Tinklas - VLAN skaičius - 32
Tvarumas - Tvarumo laikymasis - Taip
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Valdymo funkcijos - debesijos valdomas - Taip
Valdymo funkcijos - Komutatoriaus lygmuo - L2
Valdymo funkcijos - Komutatoriaus tipas - Managed
Valdymo funkcijos - Paslaugų kokybės (QoS) palaikymas - Taip
Valdymo funkcijos - Valdymas internetu - Taip
Vienetai pristatymo dėžėje - 1
Vienetas Apskaičiuotas svoris - 1.25 kg
Vienetas Apskaičiuotas tūris - 0,005513 kubinio metro
Vieneto dėžės aukštis - 0.09
Vieneto dėžės ilgis - 0.25
Vieneto dėžės plotis - 0.245
10/100/1000M LAN Ports - 2
10/100M LAN Ports - 8
Description - "10-Port Cloud Managed Desktop Switch with 8-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."
Certificates - Compliance certificates - CE
CnCode CnCode - 85176200
Design - Reset button - Yes
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Rack mounting - No
Design - Product colour - Black
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 0.5 MB
Data transmission - Switching capacity - 5.6 Gbit/s
Data transmission - Forwarding rate - 4.17 Mpps
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Forwarding rate - 4.17 Mpps
Warranty - 36 months
WarrantyInfo -
GTIN - 6923172571168
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
Switch type - L2
Category - Network Switches
Category Code - SWI
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W.Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
LongProductName - 10-Port Cloud Managed Desktop Switch with 8-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)
Power - Power consumption (max) - 110 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power - DC input voltage - 54 V
Power - Redundant power supply (RPS) support - Yes
Power - Input current - 2.22 A
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power supply - External
Dimensions - 190 × 106 × 30 mm
Model name - CS4010-8ET-110
Packaging data - Package height - 87 mm
Packaging data - Package depth - 244 mm
Packaging data - Package width - 256 mm
Packaging data - Package weight - 1.25 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Title - Dahua Technology DH-CS4010-8ET-110 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Switching capacity - 5.6 Gbps
Full Description Line - Type L2|Desktop/pedestal|8x10/100M|2x10/100/1000M|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE ports 8|Switching capacity 5.6 Gbps|Forwarding rate 4.17 Mpps|Power supply External|Dimensions 190 × 106 × 30 mm|Product Net Weight 0.5 kg
Primary port count - 8
PoE ports - 8
Brand - Dahua Technology
BrandPartCode - DH-CS4010-8ET-110
Ports & interfaces - Fast Ethernet (copper) ports quantity - 8
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Product Net Weight - 0.5 kg
ProductName - DH-CS4010-8ET-110
Security - DHCP features - DHCP client
ShortSummaryDescription - Dahua Technology DH-CS4010-8ET-110, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Width Shipping/Package Box Dimensions - 24.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.25 kg
Desktop/pedestal Mounting Type - Yes
Weight & dimensions - Height - 30 mm
Weight & dimensions - Depth - 106 mm
Weight & dimensions - Width - 190 mm
Weight & dimensions - Weight - 500 g
Network - 10G support - No
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Network - Number of VLANs - 32
Sustainability - Sustainability compliance - Yes
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Management features - Cloud-managed - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Quality of Service (QoS) support - Yes
Management features - Web-based management - Yes
Units per Shipping Box - 1
Unit Calculated Weight - 1.25 kg
Unit Calculated Volume - 0.005513 cubm
Unit Box Height - 0.09
Unit Box Length - 0.25
Unit Box Width - 0.245
10/100M LAN Ports - 8
Description - "10-Port Cloud Managed Desktop Switch with 8-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."
Certificates - Compliance certificates - CE
CnCode CnCode - 85176200
Design - Reset button - Yes
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Rack mounting - No
Design - Product colour - Black
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 0.5 MB
Data transmission - Switching capacity - 5.6 Gbit/s
Data transmission - Forwarding rate - 4.17 Mpps
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Forwarding rate - 4.17 Mpps
Warranty - 36 months
WarrantyInfo -
GTIN - 6923172571168
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
Switch type - L2
Category - Network Switches
Category Code - SWI
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W.Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
LongProductName - 10-Port Cloud Managed Desktop Switch with 8-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)
Power - Power consumption (max) - 110 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power - DC input voltage - 54 V
Power - Redundant power supply (RPS) support - Yes
Power - Input current - 2.22 A
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power supply - External
Dimensions - 190 × 106 × 30 mm
Model name - CS4010-8ET-110
Packaging data - Package height - 87 mm
Packaging data - Package depth - 244 mm
Packaging data - Package width - 256 mm
Packaging data - Package weight - 1.25 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Title - Dahua Technology DH-CS4010-8ET-110 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Switching capacity - 5.6 Gbps
Full Description Line - Type L2|Desktop/pedestal|8x10/100M|2x10/100/1000M|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE ports 8|Switching capacity 5.6 Gbps|Forwarding rate 4.17 Mpps|Power supply External|Dimensions 190 × 106 × 30 mm|Product Net Weight 0.5 kg
Primary port count - 8
PoE ports - 8
Brand - Dahua Technology
BrandPartCode - DH-CS4010-8ET-110
Ports & interfaces - Fast Ethernet (copper) ports quantity - 8
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Product Net Weight - 0.5 kg
ProductName - DH-CS4010-8ET-110
Security - DHCP features - DHCP client
ShortSummaryDescription - Dahua Technology DH-CS4010-8ET-110, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Width Shipping/Package Box Dimensions - 24.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.25 kg
Desktop/pedestal Mounting Type - Yes
Weight & dimensions - Height - 30 mm
Weight & dimensions - Depth - 106 mm
Weight & dimensions - Width - 190 mm
Weight & dimensions - Weight - 500 g
Network - 10G support - No
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Network - Number of VLANs - 32
Sustainability - Sustainability compliance - Yes
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Management features - Cloud-managed - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Quality of Service (QoS) support - Yes
Management features - Web-based management - Yes
Units per Shipping Box - 1
Unit Calculated Weight - 1.25 kg
Unit Calculated Volume - 0.005513 cubm
Unit Box Height - 0.09
Unit Box Length - 0.25
Unit Box Width - 0.245
