Unitek S1230A Enclosure NVMe/SATA 10Gbps

Description - S1230A - Unitek M.2 NVMe/SATA 10Gbps Drive Enclosure S1230A The S1230A drive enclosure is the hardware for professionals. It is compatible with all the latest M.2 SSD standards and sizes. Thanks to this enclosure, you can always have your data with you and run it on your TV, computer or any other device with a USB port. M.2 enclosure 2280, 2260, 2242, 2230 Unitek S1230A is an enclosure created for M.2 drives, the latest standard among storage media. M.2 drives are much smaller than their 2.5" counterparts, and this enclosure is suitable for M.2 2280, 2260, 2242 and 2230 drives. The first two digits in this designation indicate the width of such a drive (22 mm in each case), and the next two indicate its length. The Unitek S1230A enclosure is compatible with all the listed M.2 drive lengths. Fast data exchange compatibility with NVMe and SATA interfaces The S1230A is a universal enclosure for M.2 drives and is therefore compatible not only with all available drive sizes, but also with NVMe and SATA interfaces. The NVMe specification represents a new standard in data transfer, placing a drive in an NVMe-compatible enclosure enables data transfer rates of up to 10 Gbps. Unitek's M.2 NVMe S1230A drive enclosure is the equipment for professionals who appreciate the express transfer of even very large files! As one of the few models, the enclosure also supports M.2 SATA drives with a B+M key. Express installation of an SSD in the enclosure! The Unitek S1230A is an extremely intuitive and easy-to-use M.2 SSD enclosure. Simply slide out the drawer and place the SSD in it, then place the pressure piece at the correct level for the length of the drive. Now all you have to do is close the enclosure, plug in the USB-C cable and go to work! Minimalist and elegant With its dimensions, the Unitek S1230A M.2 SSD enclosure is more akin to a memory stick than a traditional hard drive enclosure. Unitek S1230A will therefore fit even into a small pocket in a jacket or trousers. The exterior of the case is made of quality aluminium alloy, so it protects the contents well and looks great. It's a small and aesthetically pleasing gadget to keep your data always within reach!
Stuff - Aluminum
dimensionalWeight - 107
Design - Housing material - ABS
Design - Product colour - Grey
Design - Product type - M.2 drive enclosure
sizeX - 30
ean - 4894160048493
Form factor (width) - M.2
Form factor (width) - M.2 2230
Form factor (width) - M.2 2242
Form factor (width) - M.2 2260
Form factor (width) - M.2 2280
producer - Unitek
guarantee - 24
warrantyType - F
guarantee_type - external
HDD interface - M.2
HDD interface - NVMe
HDD interface - SATA
HDD interface - USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2

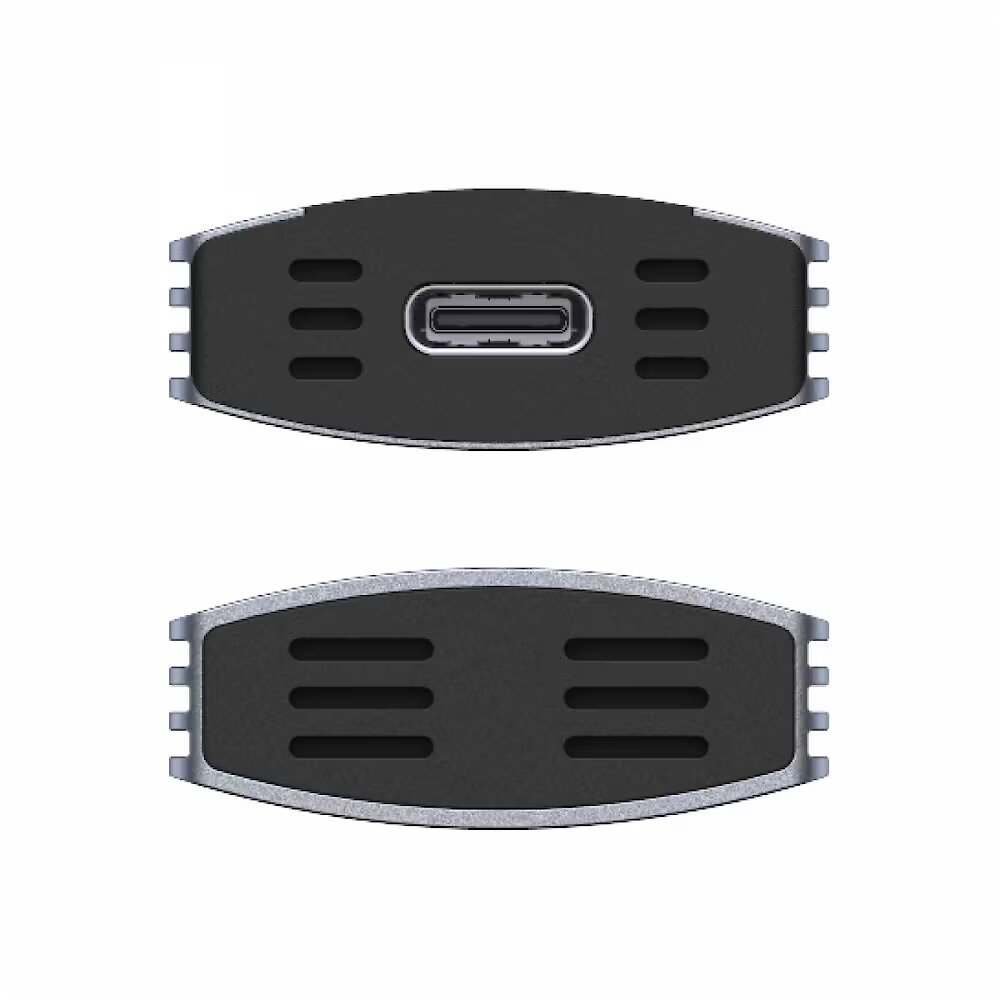

Connectors - 1 x USB (Type C)
Other features - Key features:   USB 3.2 Gen 2 10 Gbps standard USB-C port Supports both NVMe/PCIe and M.2 SATA/AHCI drives Supports M or B+M keyed drives
Dimensions - 11x1x3 cm
dimension height - 200 mm
dimension depth - 30 mm
dimension width - 105 mm
dimension weight - 105 g
Performance - Data transfer rate - 10 Gbit/s
Packaging content - Cables included - USB Type-C - USB Type-C/USB Type-A
Supported operating systems - Mac OS
Supported operating systems - Linux
Supported operating systems - Windows
Designation - CE+WEEE
name - Enclosure NVMe/SATA 10 Gbps uDrive; S1230A
Accessories included - M.2 aluminum housing 10Gbps USB-C cable with USB-A adapter Silicone pad to be mounted on the disk User manual
producerCode - S1230A
productName - UNITEK M.2 ENCLOSURE, USB 3.2 Gen2 Type-C M.2 NVME/SATA SSD
productSize - Normal
Safety warning - Warnings - Do not dismantle the housing without the proper tools and technical knowledge.
Safety warning - Warnings - Do not store or use the unit near heat sources.
Storage - M.2 SSD size - 2230, 2242, 2260, 2280
Storage - Supported storage drive interfaces - M.2, NVMe, SATA III
Storage - Storage drive size - M.2
Storage - USB connectivity - Yes
Storage - USB port type - USB Type-C
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 7
System requirements - Windows operating systems supported - Windows 8
System requirements - Windows operating systems supported - Windows 10
System requirements - Windows operating systems supported - Windows Vista
System requirements - Windows operating systems supported - Windows XP
sizeY - 105
sizeZ - 170
Color - Silver
Weight - 39 g
weight - 100
Weight & dimensions - Height - 13.1 mm
Weight & dimensions - Depth - 107 mm
Weight & dimensions - Width - 32.4 mm
Type - External enclosure
Performance - Plug and Play - Yes
vendpn - S1230A
warrantyLength - 24
