Aplinkos reikalavimai - Working temperature: -10C ~ +50C Storage temperature: -15C do +60C
Aprašymas - Be energy independent
The performance of a photovoltaic system depends on the selection of the right inverter, or solar inverter. The inverter performs a key function in this system, converting the DC current generated by the photovoltaic panels into AC current used by household appliances. The off-grid hybrid inverter connects the photovoltaic system, energy storage and the grid.
It uses excess solar energy to power consumers and charge the battery. When energy production is greater than current demand, the excess current can be transferred to charge LiFePO4, AGM, GEL or energy storage batteries, allowing energy to be stored for later use, such as at night or on cloudy days. The hybrid inverter can automatically switch to off-grid mode, supplying energy from the batteries.

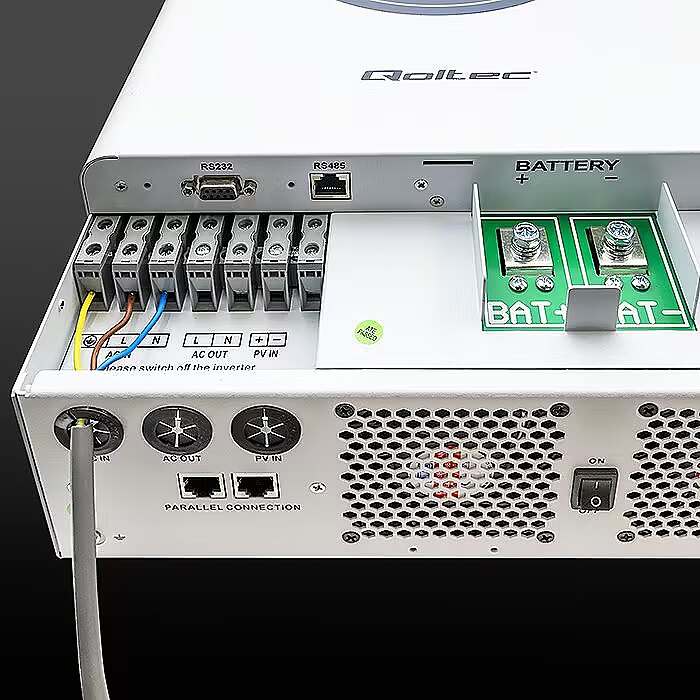

Why should you choose a hybrid inverter? Inverter with pure sine wave inverter type, automatic restart during AC power restoration, readable multifunctional touchscreen LCD display, 120A MPPT charge controller, option of mains or generator power supply, power factor 1.0, ability to change AC/Solar charger priority settings via LCD display, intelligent charger design for optimum battery performance, configurable input voltage range for home appliances and PCs via settings on the LCD display panel, configurable battery charging current depending on appliances and PCs via settings on the LCD display, cold start function, możliwość podłączenia do 12 jednostek, reserved communication port for BMS (RS485, RS232). Maximize the possibilities with MPPT technology
The battery charging inverter uses a state-of-the-art 120A MPPT charge controller to maximize the power drawn from the photovoltaic panels, using advanced maximum power point tracking technology. Having this feature significantly affects the efficiency of the photovoltaic installation-they can maintain high power even in low sunlight conditions. In addition, the controller controls the battery operation and charging process and protects the battery from damage.

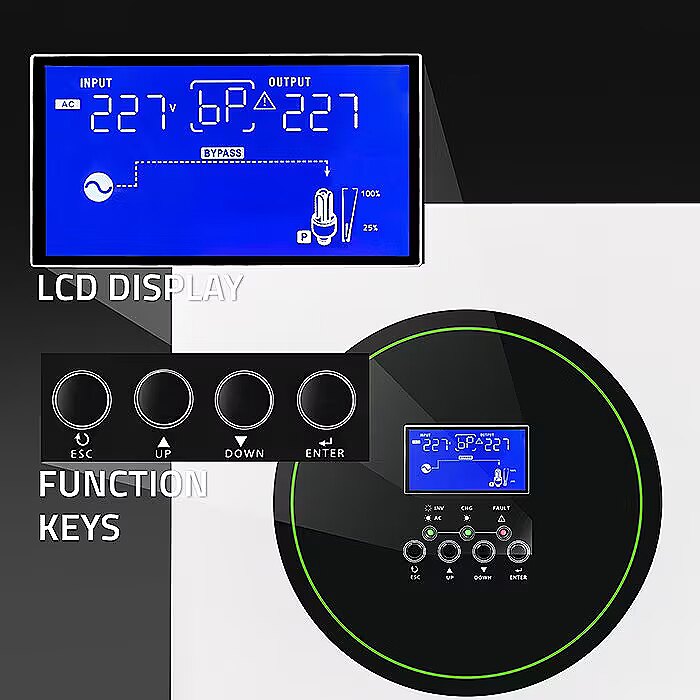

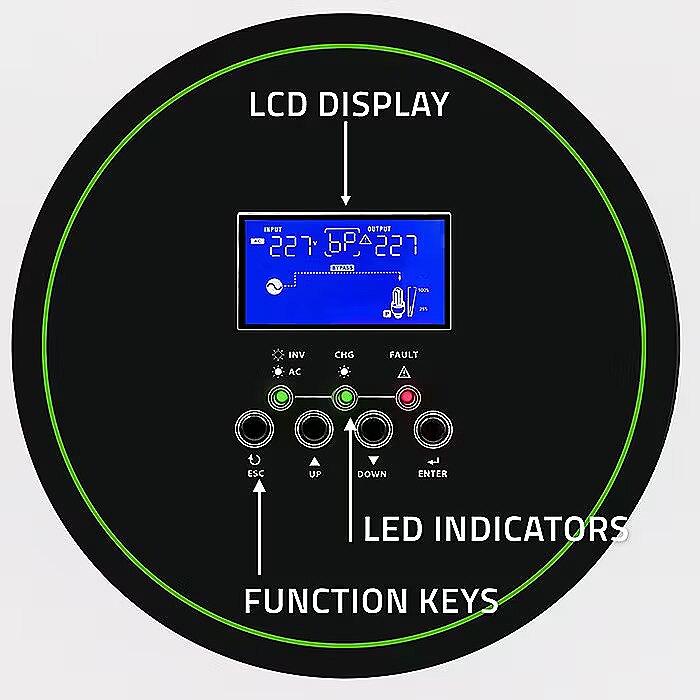

Multifunctional touch-screen LCD display
The product is equipped with a multifunctional, easy-to-use LCD display with control panel. Facilitates monitoring of the entire photovoltaic installation. Allows you to configure the input voltage range for home appliances and personal computers or change the priority settings of the AC/Solar charger. In addition, the display records data and informs about failures, reacting accordingly if any of the parameters exceed the norm. If a fault occurs, the inverter shuts down.
Advantages of a modular inverter
To increase the power and efficiency of the system, up to 12 inverter units can be connected in parallel. Advantages of combining 12 units: Ability to gradually increase the power of the system depending on demand. Greater reliability in case of failure one unit the rest of the system continues to work. Better energy management Intelligent load sharing between units ensures energy efficiency. Loss reduction The ability to operate within an optimal range of voltages and intensities improves system performance. Flexibility The ability to adjust the configuration to different operating conditions (e.g., PV priority mode, battery priority mode, hybrid mode). Battery Management System (BMS)
The built-in BMS battery management system is crucial for the long-term life of the battery in an off-grid system. The BMS monitors and manages battery parameters, ensuring optimal charging, discharging and protecting against overcharging or over-discharge. This allows users to enjoy a reliable source of energy for many years.
Apsaugos klasė - Nėra
ean - 5901878538617
Efficiency (max.) - 95 %
European efficiency - 95 %
Filtrai / apsauga - Grandinė
Filtrai / apsauga - Per didelis įkrovimas
Filtrai / apsauga - Perkaitimas
Filtrai / apsauga - Perkrova
Funkcijos -
gamintojas - Qoltec
garantija - 24
garantijos_tipas - išorinis
I/O jungtys - Nėra
Išėjimo srovė (maks.) - 27 A
Kitos funkcijos -
Maitinimas - 6.2 kW

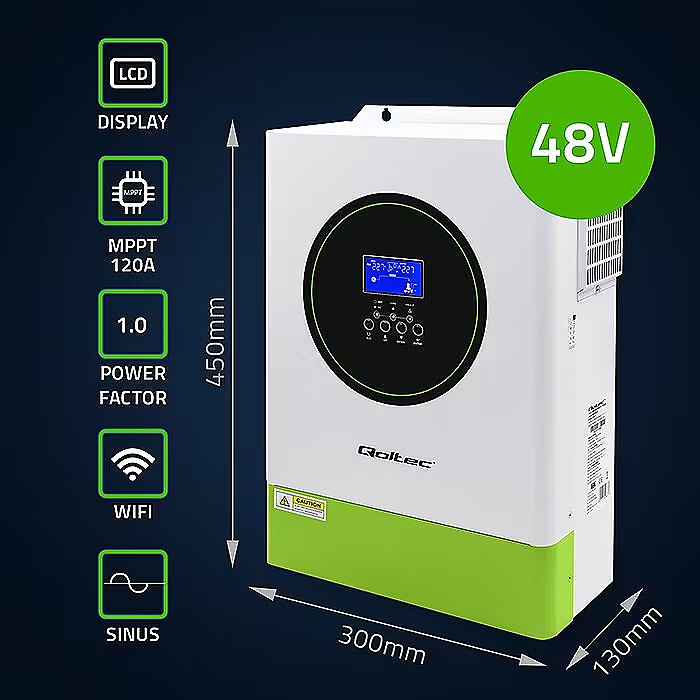

Matmenys - (D/L x W x H): 450 x 300 x 130 mm
matmenų aukštis - 200 mm
matmenų gylis - 550 mm
matmenų plotis - 400 mm
matmuo svoris - 9700 g
MPPT number - 1
MPPT voltage (max) - 500 V
MPPT voltage (min) - 60 V
Number of phases - 1
Pavadinimas - CE+WEEE

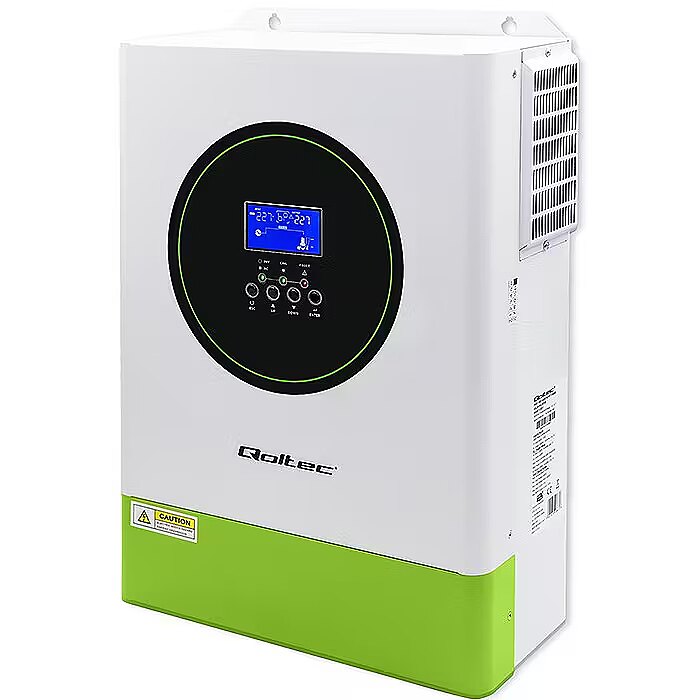

pavadinimas - Off Grid solar inverter 6.2kVA 6.2kW 120A MPPT

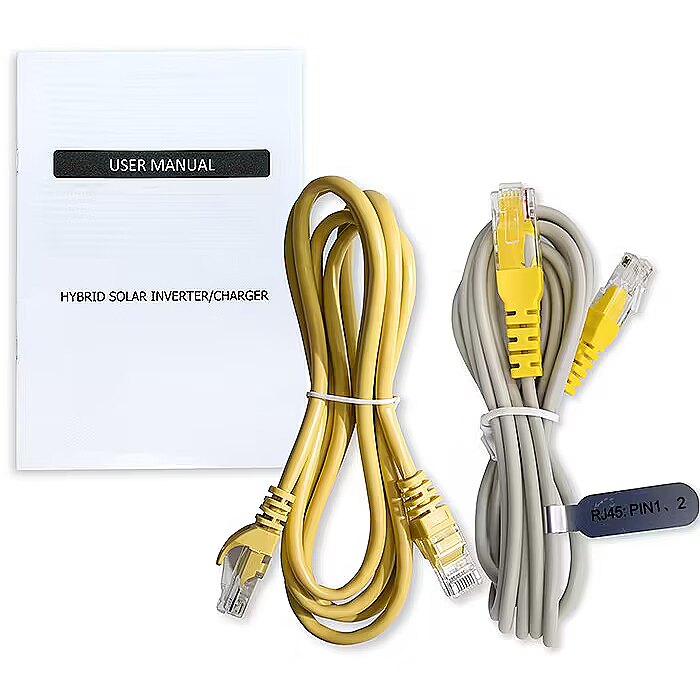

Pridedami priedai - Solar inverter User manual Device installation protocol
Spalva - Balta
Spalva - Žalioji
Srovė (maks.) - 120 A
Svoris - 9.7 kg
vendpn - 53861
Environment requirements - Working temperature: -10C ~ +50C Storage temperature: -15C do +60C
Description - Be energy independent
The performance of a photovoltaic system depends on the selection of the right inverter, or solar inverter. The inverter performs a key function in this system, converting the DC current generated by the photovoltaic panels into AC current used by household appliances. The off-grid hybrid inverter connects the photovoltaic system, energy storage and the grid.
It uses excess solar energy to power consumers and charge the battery. When energy production is greater than current demand, the excess current can be transferred to charge LiFePO4, AGM, GEL or energy storage batteries, allowing energy to be stored for later use, such as at night or on cloudy days. The hybrid inverter can automatically switch to off-grid mode, supplying energy from the batteries.
Why should you choose a hybrid inverter? Inverter with pure sine wave inverter type, automatic restart during AC power restoration, readable multifunctional touchscreen LCD display, 120A MPPT charge controller, option of mains or generator power supply, power factor 1.0, ability to change AC/Solar charger priority settings via LCD display, intelligent charger design for optimum battery performance, configurable input voltage range for home appliances and PCs via settings on the LCD display panel, configurable battery charging current depending on appliances and PCs via settings on the LCD display, cold start function, możliwość podłączenia do 12 jednostek, reserved communication port for BMS (RS485, RS232). Maximize the possibilities with MPPT technology
The battery charging inverter uses a state-of-the-art 120A MPPT charge controller to maximize the power drawn from the photovoltaic panels, using advanced maximum power point tracking technology. Having this feature significantly affects the efficiency of the photovoltaic installation-they can maintain high power even in low sunlight conditions. In addition, the controller controls the battery operation and charging process and protects the battery from damage.
Multifunctional touch-screen LCD display
The product is equipped with a multifunctional, easy-to-use LCD display with control panel. Facilitates monitoring of the entire photovoltaic installation. Allows you to configure the input voltage range for home appliances and personal computers or change the priority settings of the AC/Solar charger. In addition, the display records data and informs about failures, reacting accordingly if any of the parameters exceed the norm. If a fault occurs, the inverter shuts down.
Advantages of a modular inverter
To increase the power and efficiency of the system, up to 12 inverter units can be connected in parallel. Advantages of combining 12 units: Ability to gradually increase the power of the system depending on demand. Greater reliability in case of failure one unit the rest of the system continues to work. Better energy management Intelligent load sharing between units ensures energy efficiency. Loss reduction The ability to operate within an optimal range of voltages and intensities improves system performance. Flexibility The ability to adjust the configuration to different operating conditions (e.g., PV priority mode, battery priority mode, hybrid mode). Battery Management System (BMS)
The built-in BMS battery management system is crucial for the long-term life of the battery in an off-grid system. The BMS monitors and manages battery parameters, ensuring optimal charging, discharging and protecting against overcharging or over-discharge. This allows users to enjoy a reliable source of energy for many years.
Protection class - None
ean - 5901878538617
Efficiency (max.) - 95 %
European efficiency - 95 %
Filters / protection - Circuit
Filters / protection - Overcharging
Filters / protection - Overheating
Filters / protection - Overload
Functions -
producer - Qoltec
guarantee - 24
guarantee_type - external
I/O connectors - None
Output current (max) - 27 A
Other features -
Power - 6.2 kW
Dimensions - (D/L x W x H): 450 x 300 x 130 mm
dimension height - 200 mm
dimension depth - 550 mm
dimension width - 400 mm
dimension weight - 9700 g
MPPT number - 1
MPPT voltage (max) - 500 V
MPPT voltage (min) - 60 V
Number of phases - 1
Designation - CE+WEEE
name - Off Grid solar inverter 6.2kVA 6.2kW 120A MPPT
Accessories included - Solar inverter User manual Device installation protocol
Color - White
Color - Green
Current (max.) - 120 A
Weight - 9.7 kg
vendpn - 53861
