Dizainas - Apšvietimas - Taip
Dizainas - Aušinimo tipas - Aktyvus
Dizainas - Produkto spalva - Juoda
Dizainas - Ventiliatoriaus vieta - Viršuje
Dizainas - Ventiliatorių skaičius - 1 ventiliatorius (-ai)
ean - 4711387610596
Galia - bendra galia - 1000 W
Galia - maksimali išėjimo srovė (+5 V) - 25 A
Galia - maksimali išėjimo srovė (+5Vsb) - 3 A
Galia - maksimali išėjimo srovė (+12 V) - 83.33 A
Galia - maksimali išėjimo srovė (-12 V) - 0.3 A
GarantijaInformacija - 10 metų garantija
GTIN - 4711387610596
kategorija - Kompiuterių komponentai|Galios maitinimo šaltiniai|Didesni nei 800 W galios maitinimo šaltiniai
Kategorija - Maitinimo blokai
kodas - 90YE00V3-B0NA00

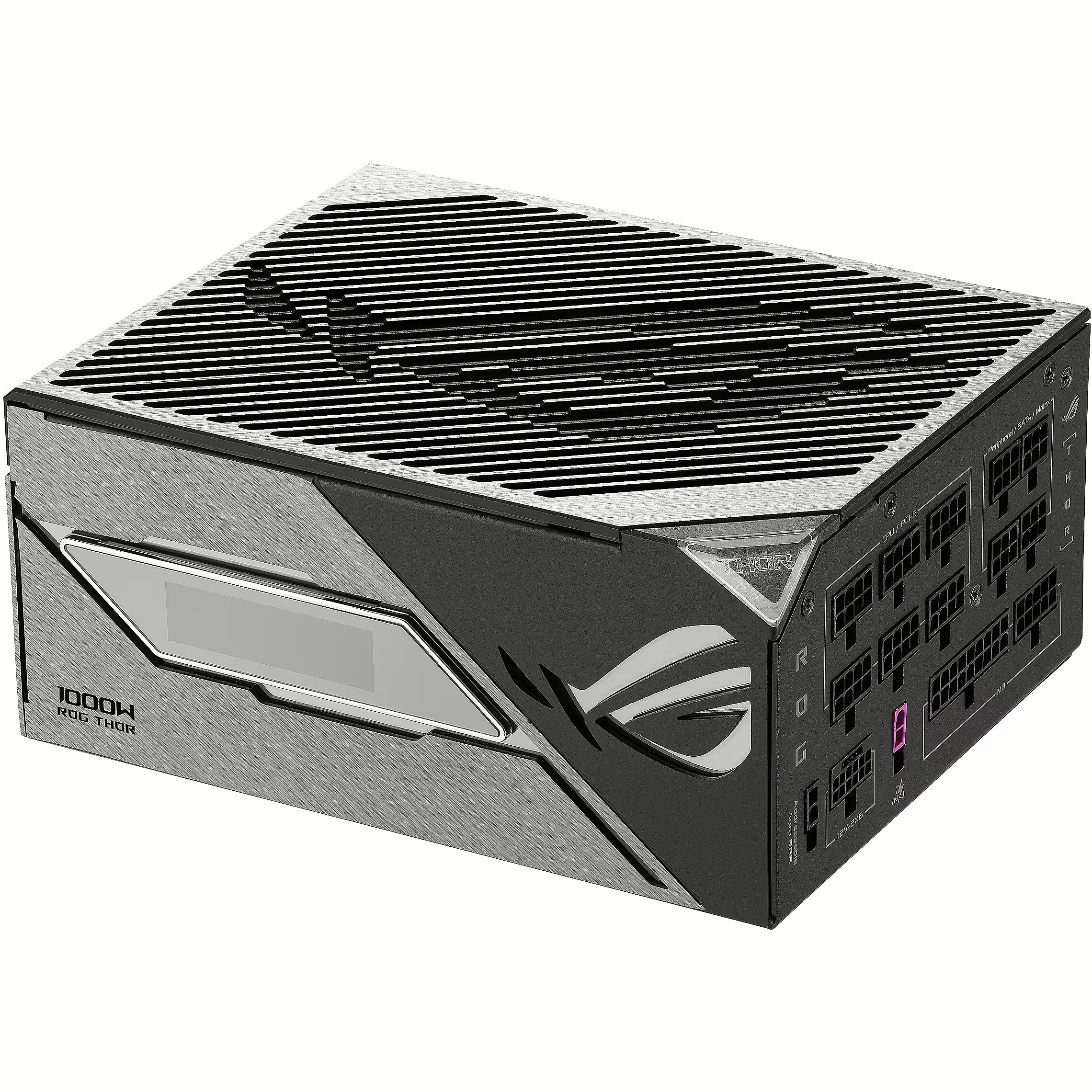

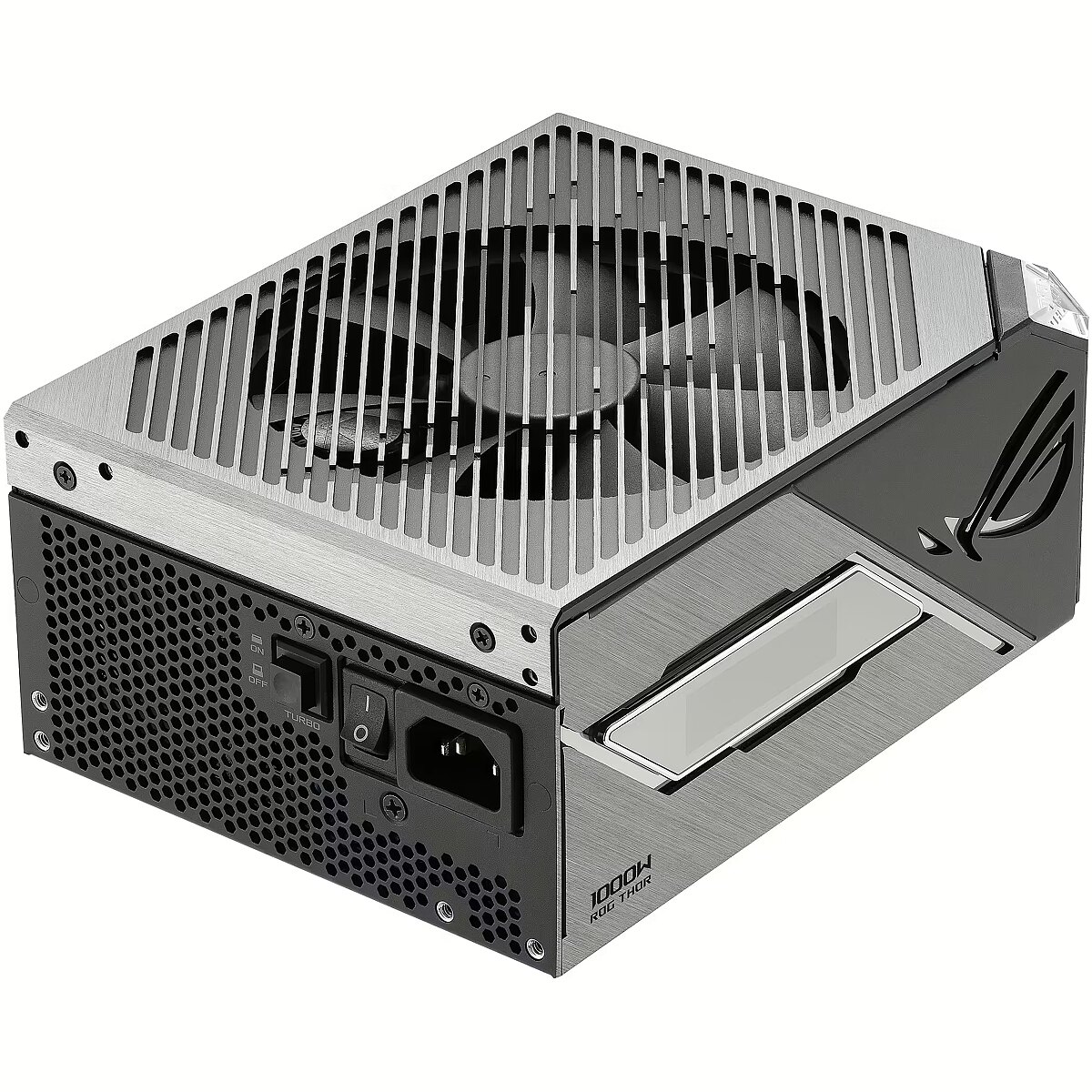

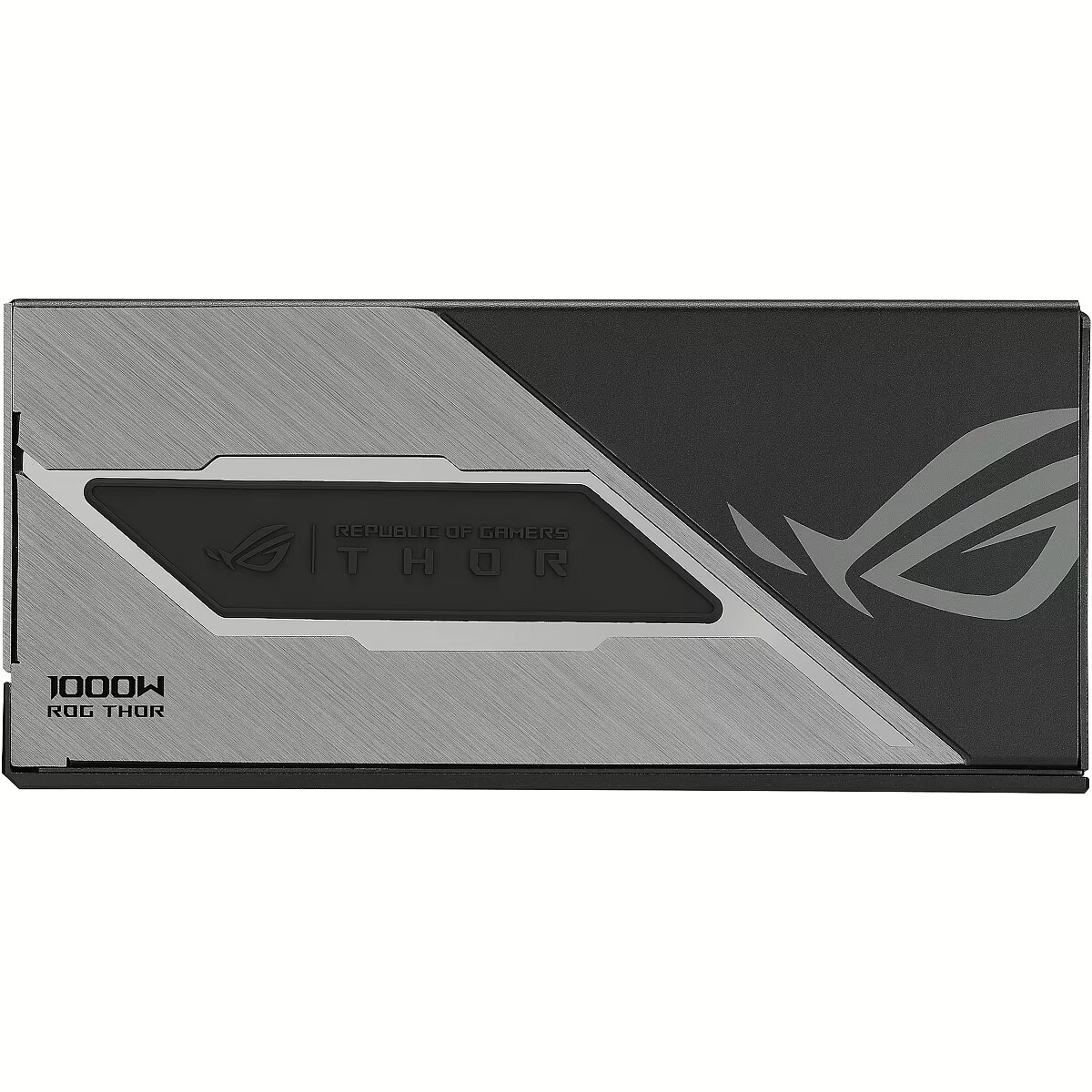

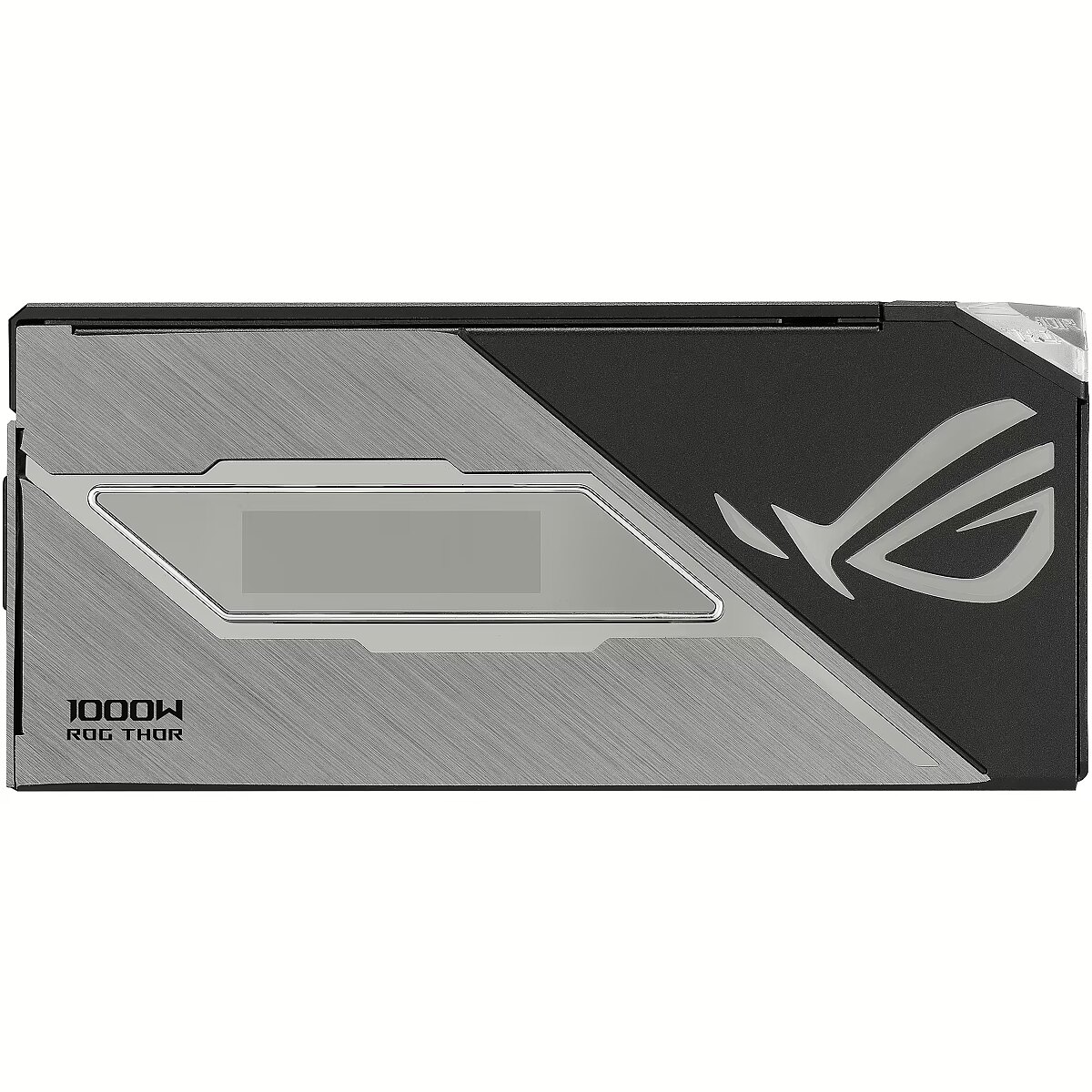

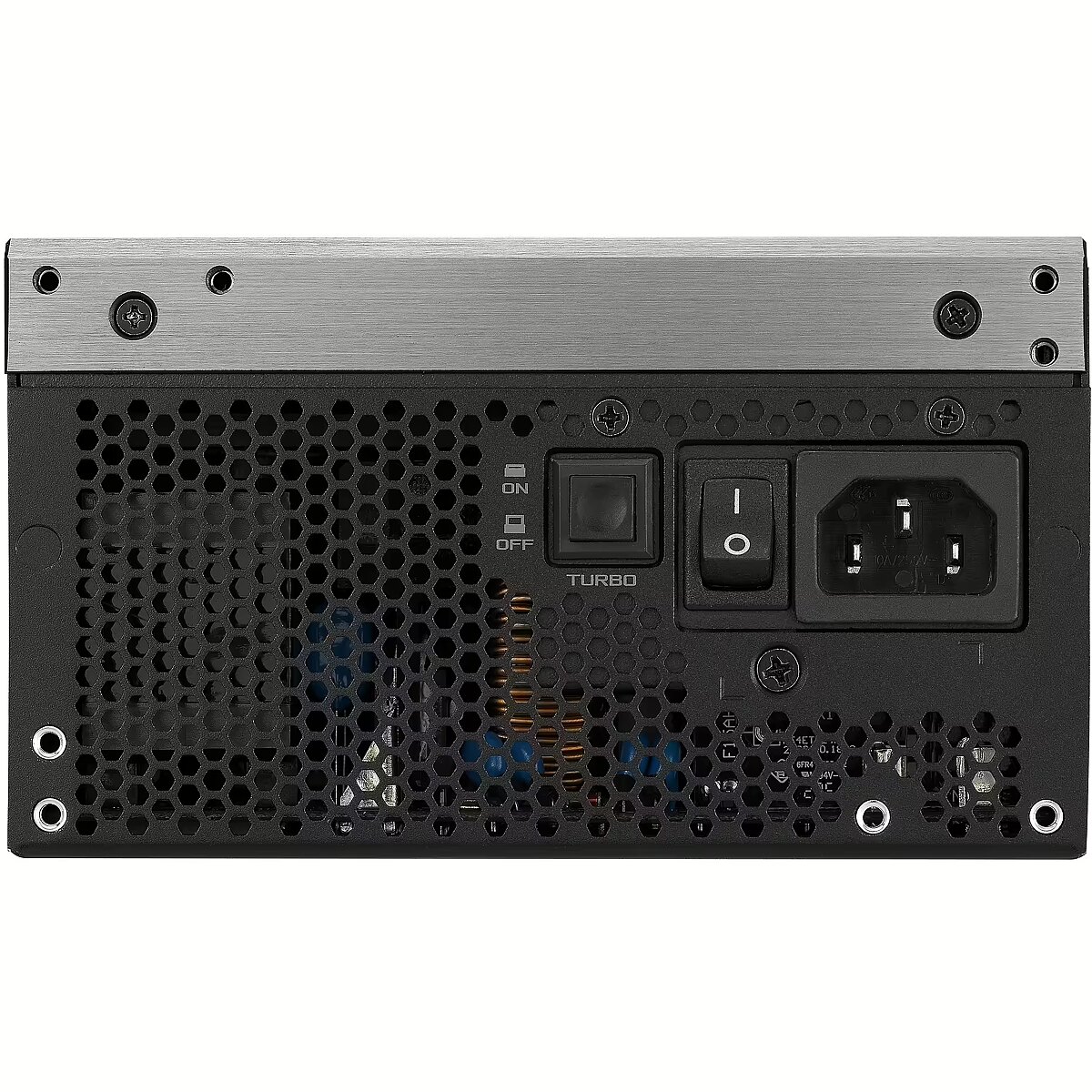

LongDesc - Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC buildROG THOR 1000W PLATINUM IIIULTIMATE POWER. UNMATCHED STABILITY.The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
LongProductName - ROG Thor 1000W Platinum III
LongSummaryDescription - ASUS ROG -THOR-1000P3-GAMING. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Maitinimas - galios faktoriaus korekcijos (PFC) tipas - Aktyvus
Maitinimas - kintamosios srovės įėjimo įtampa - 100 - 240 V
Maitinimas - Kombinuotas maitinimas (+3,3 V) - 125 W
Maitinimas - Kombinuotas maitinimas (+5 V) - 125 W
Maitinimas - Kombinuotas maitinimas (+5Vsb) - 15 W
Maitinimas - Kombinuotas maitinimas (+12 V) - 1000 W
Maitinimas - Kombinuotas maitinimas (-12V) - 3.6 W
Maitinimas - maitinimo apsaugos funkcijos - Per didelė srovė, Per didelė galia, Per didelė įtampa, Perkaitimas, Trumpasis jungimas, Nepakankama galia
Maitinimas - maksimali išėjimo srovė (+3,3 V) - 30 A
Našumas - 80 PLUS sertifikatas - 80 PLUS Platinum
Našumas - ATX versija - 3.1
Pakuotės duomenys - Pakuotės aukštis - 127 mm
Pakuotės duomenys - Pakuotės gylis - 241 mm
Pakuotės duomenys - Pakuotės plotis - 379 mm
Pakuotės duomenys - Pakuotės svoris - 5.08 kg
Pakuotės duomenys - Pakuotės tipas - Dėžutė
Pakuotės turinys - Įtraukti kabeliai - CPU, PCIe, SATA, periferinis (Molex)
Pavadinimas - ASUS ROG -THOR-1000P3-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black
pavadinimas - ASUS ROG Thor Platinum III, 80 PLUS Platinum Netzteil, modular, ATX 3.1, PCIe 5.1 - 1.000 Watt
Prekės ženklas - ASUS
Prekės ženklo dalies kodas - 90YE00V3-B0NA00
Prievadai ir sąsajos - "PCI Express" maitinimo jungtys (6+2 kontaktų) - 4
Prievadai ir sąsajos - "PCI Express" maitinimo jungtys (16 kontaktų) - 1
Prievadai ir sąsajos - "PCI Express" maitinimo kabelio ilgis - 75 cm
Prievadai ir sąsajos - CPU maitinimo jungtis (4+4 kontaktų) - Taip
Prievadai ir sąsajos - CPU maitinimo kabelio ilgis - 100 cm
Prievadai ir sąsajos - Kabelių tipas - Visiškai modulinis
Prievadai ir sąsajos - Pagrindinės plokštės maitinimo jungtis - 20+4 kontaktų ATX
Prievadai ir sąsajos - Pagrindinės plokštės maitinimo kabelio ilgis - 61 cm
Prievadai ir sąsajos - Periferinio (Molex) maitinimo laido ilgis - 400,150 mm
Prievadai ir sąsajos - Periferinės (Molex) maitinimo jungtys (4 kontaktų) - 6
Prievadai ir sąsajos - SATA maitinimo jungčių skaičius - 7
Prievadai ir sąsajos - SATA maitinimo kabelio ilgis - 400,120 mm
Produkto pavadinimas - ROG-THOR-1000P3-GAMING
ShortSummaryDescription - ASUS ROG -THOR-1000P3-GAMING, 1000 W, 100 - 240 V, Active, 125 W, 1000 W, 125 W
Svoris ir matmenys - Aukštis - 86 mm
Svoris ir matmenys - Gylis - 150 mm
Svoris ir matmenys - Plotis - 190 mm
Svoris ir matmenys - Svoris - 2.37 kg
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1000p3-gaming/
Veikimas - Guolių technologija - DBB
Veikimas - Maitinimo bloko (PSU) formos faktorius - ATX
Veikimas - Tikslas - KOMPIUTERIS
Veikimas - vidutinis laikas tarp gedimų (MTBF) - 120000 h
Design - Illumination - Yes
Design - Cooling type - Active
Design - Product colour - Black

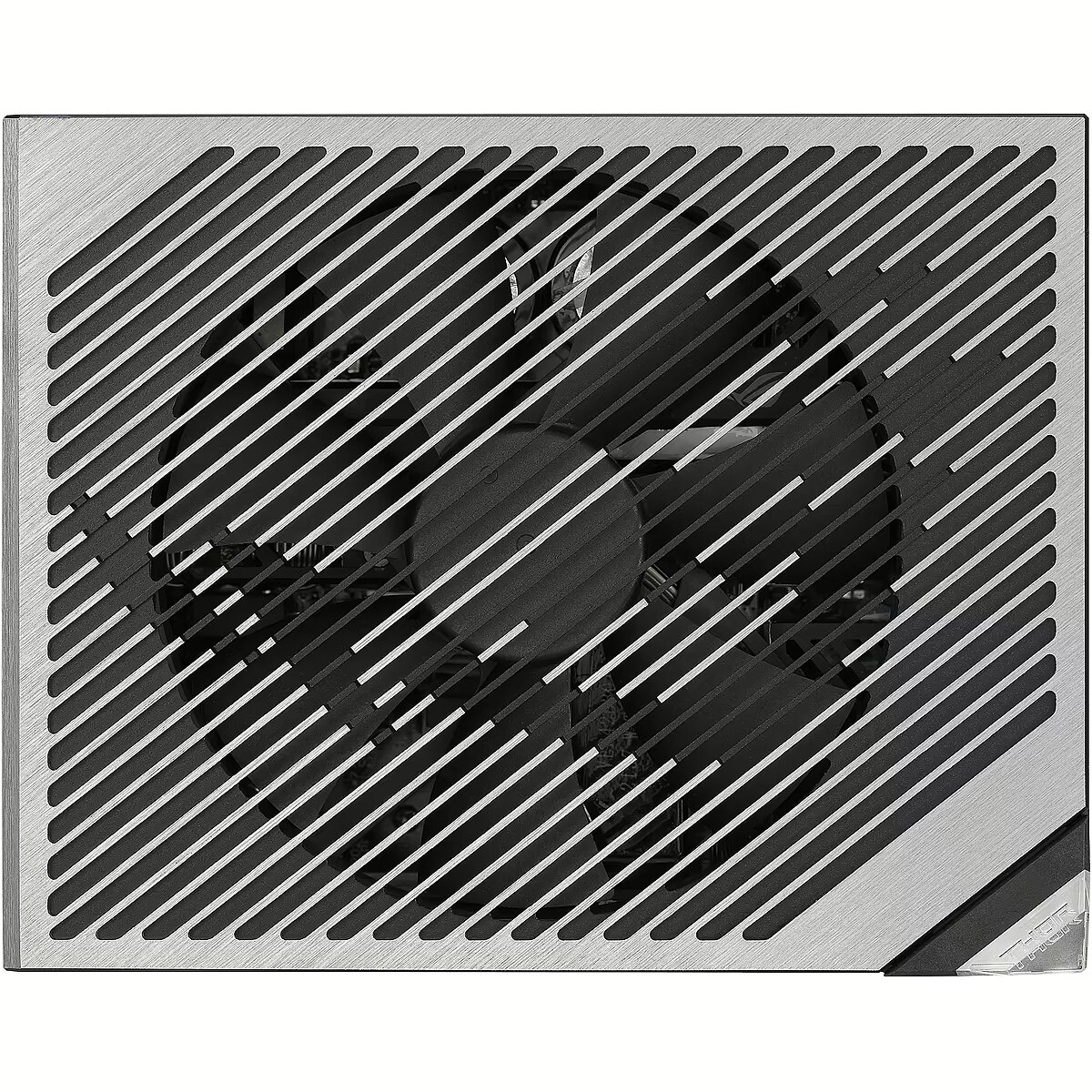

Design - Fan location - Top
Design - Number of fans - 1 fan(s)
ean - 4711387610596
Power - Total power - 1000 W
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.33 A
Power - Max output current (-12V) - 0.3 A
WarrantyInfo - 10-year warranty included
GTIN - 4711387610596
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
code - 90YE00V3-B0NA00
LongDesc - Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC buildROG THOR 1000W PLATINUM IIIULTIMATE POWER. UNMATCHED STABILITY.The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
LongProductName - ROG Thor 1000W Platinum III
LongSummaryDescription - ASUS ROG -THOR-1000P3-GAMING. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Power - Power Factor Correction (PFC) type - Active
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under power
Power - Max output current (+3.3V) - 30 A
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Packaging data - Package height - 127 mm
Packaging data - Package depth - 241 mm
Packaging data - Package width - 379 mm
Packaging data - Package weight - 5.08 kg
Packaging data - Package type - Box
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Title - ASUS ROG -THOR-1000P3-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black
name - ASUS ROG Thor Platinum III, 80 PLUS Platinum Netzteil, modular, ATX 3.1, PCIe 5.1 - 1.000 Watt
Brand - ASUS
BrandPartCode - 90YE00V3-B0NA00

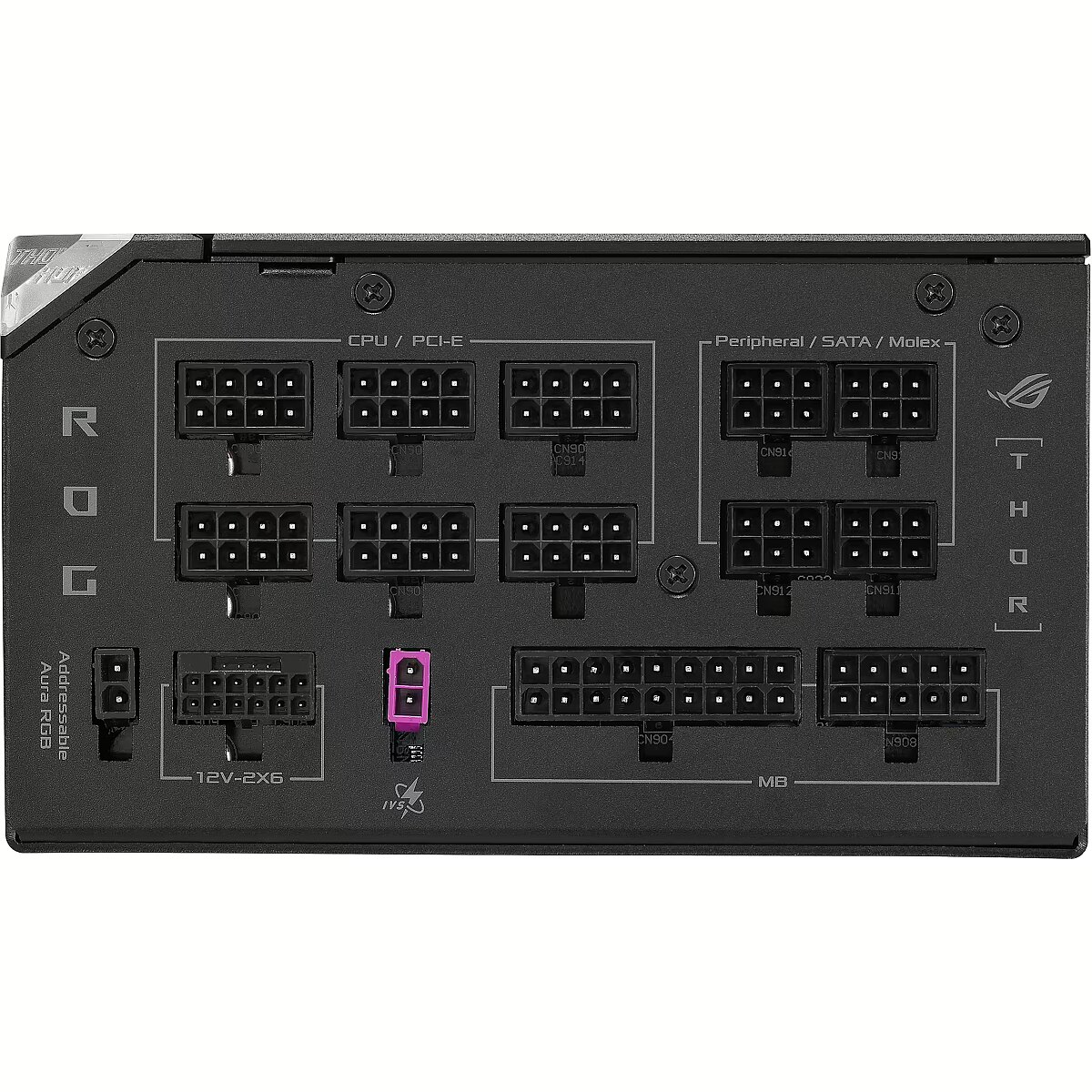

Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - SATA power cable length - 400,120 mm
ProductName - ROG-THOR-1000P3-GAMING
ShortSummaryDescription - ASUS ROG -THOR-1000P3-GAMING, 1000 W, 100 - 240 V, Active, 125 W, 1000 W, 125 W
Weight & dimensions - Height - 86 mm
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Width - 190 mm
Weight & dimensions - Weight - 2.37 kg
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1000p3-gaming/
Performance - Bearing technology - DBB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Mean time between failures (MTBF) - 120000 h
