Apkrova (maks.) - 60 kg

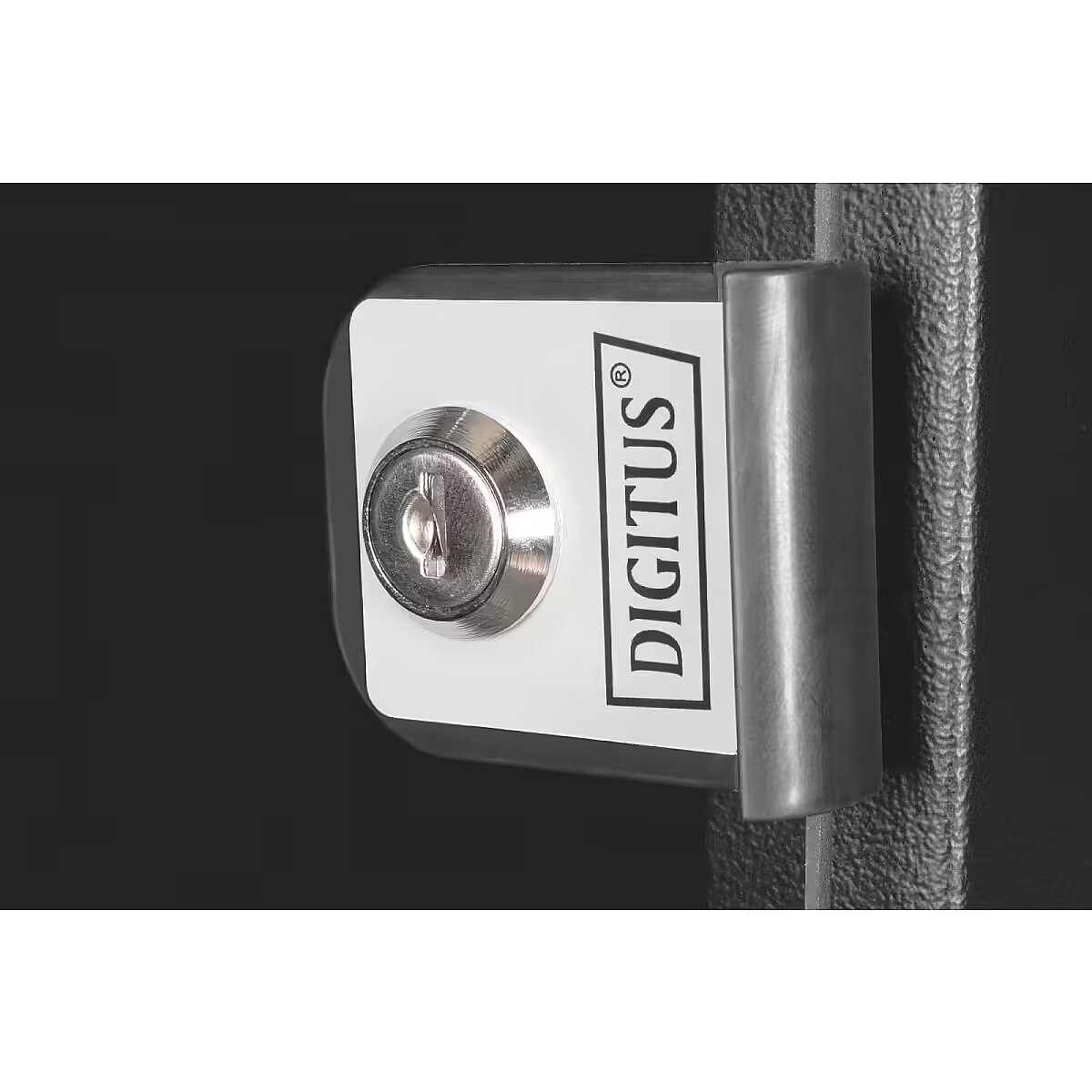

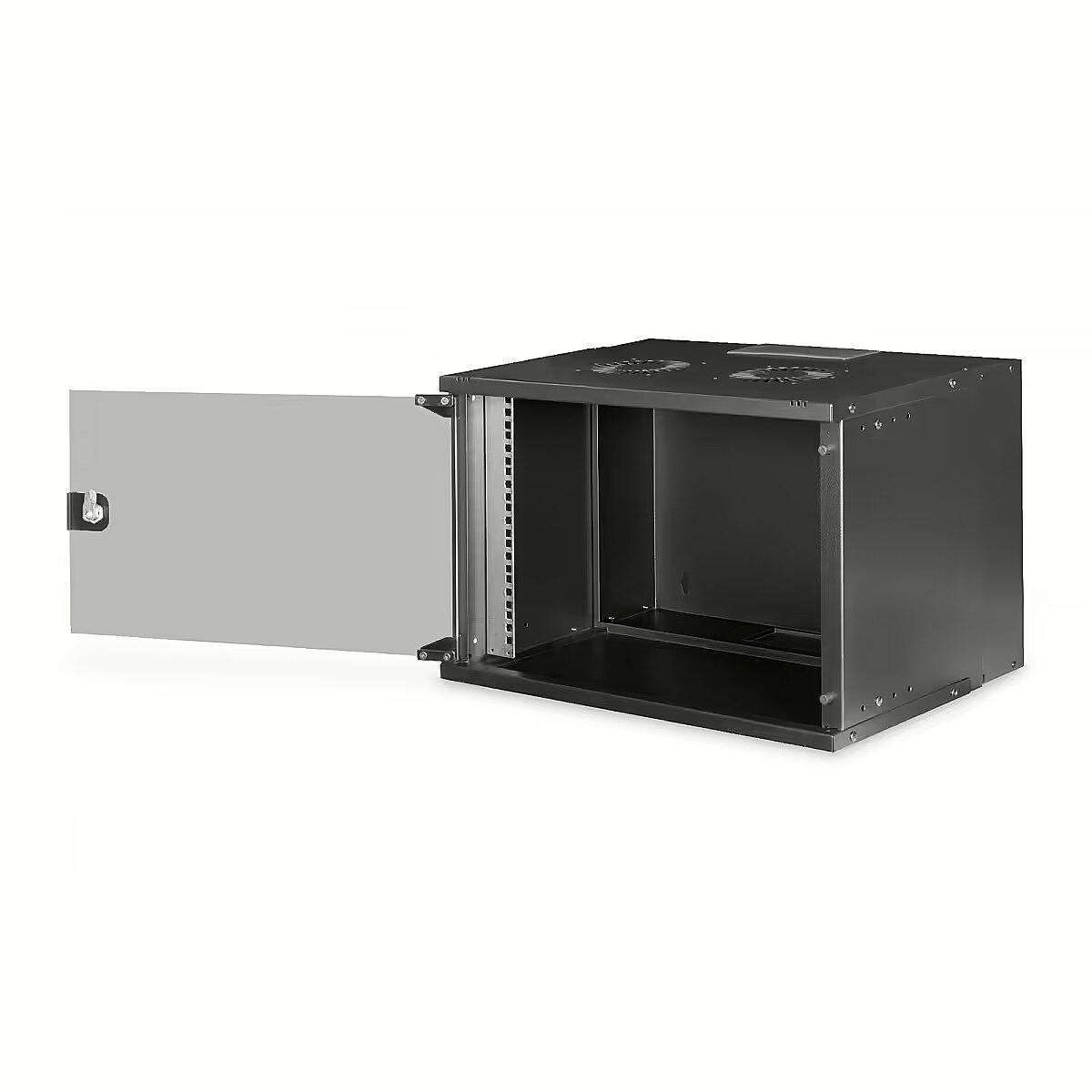

Aprašymas - The DIGITUS wall-mounted data communications cabinet is equipped with a glazed door and a cable gland in the roof and floor. The steel structure is made of steel sheet up to 1.5 mm thick. It is possible to change the side of the door hinges and adjust the depth. The rack cabinets are delivered unassembled, in a flat package. Assembly is carried out in a few simple steps thanks to the enclosed "step-by-step" instructions. Installation cabinet supplied unassembled Quick installation Door opening angle: 200° 1-point locking on front door 483 mm (19") rack profiles mounted at the front inside the cabinet, galvanized 483 mm (19") rack profiles with depth adjustment 1.1-1.5 thick, high-strength sheet steel, powder-coated Cable inlet with brush strip in the roof and plastic cover in the floor Ventilation slots for active and passive air supply and exhaust Front door: glass, single Side panels: on two sides Assembled: no
Apsaugos klasė - IP20
ARTIKEL1 - 7HE SOHO PRO WALLMOUNT CAB
ARTIKEL2 - 19INSOHO PRO 370X540X400 BLACK
Aukštis - 7U
Daiktai - Plieno
Daiktai - Plokštė
ean - 4016032493716
EANCode - 4016032493716
gamintojas - Digitus
garantija - 24
garantijos_tipas - išorinis
GRUPPE1 - Priedai
GRUPPE2 - Stovas
Hoehe - 0
HSTNUMBER - DN-49203
Kitos funkcijos -
MANUFACTURER - DIGITUS
Matmenys - Mounting depth for components max.: 327 mm Product dimensions (H x W x D): 370 x 540 x 400 mm
matmenų aukštis - 370 mm
matmenų gylis - 400 mm
matmenų plotis - 540 mm
matmuo svoris - 3200 g
Pavadinimas - CE+WEEE
pavadinimas - Wall Mount Cabinet 19 DN-49203
Platus - 0
Plotis - 540 mm
Pridedami priedai - Mounting kit (screws, cage nuts, washers) 2 x wrench 1 x quick start guide
Skolinimas - 0
Spalva - Juoda
Spalva - RAL 9005
Starling - Y
Stck_Kart - 1
Stck_Pal - 0
Svoris - 9.9 kg
Svoris - 9.91
Tipas - Montavimas ant sienos
vendpn - DN-49203
Load (max) - 60 kg
Description - The DIGITUS wall-mounted data communications cabinet is equipped with a glazed door and a cable gland in the roof and floor. The steel structure is made of steel sheet up to 1.5 mm thick. It is possible to change the side of the door hinges and adjust the depth. The rack cabinets are delivered unassembled, in a flat package. Assembly is carried out in a few simple steps thanks to the enclosed "step-by-step" instructions. Installation cabinet supplied unassembled Quick installation Door opening angle: 200° 1-point locking on front door 483 mm (19") rack profiles mounted at the front inside the cabinet, galvanized 483 mm (19") rack profiles with depth adjustment 1.1-1.5 thick, high-strength sheet steel, powder-coated Cable inlet with brush strip in the roof and plastic cover in the floor Ventilation slots for active and passive air supply and exhaust Front door: glass, single Side panels: on two sides Assembled: no
Protection class - IP20
ARTIKEL1 - 7HE SOHO PRO WALLMOUNT CAB
ARTIKEL2 - 19INSOHO PRO 370X540X400 BLACK
Height - 7U
Stuff - Steel
Stuff - Plate
ean - 4016032493716
EANCode - 4016032493716
producer - Digitus
guarantee - 24
guarantee_type - external
GRUPPE1 - Accessories
GRUPPE2 - Rack
Hoehe - 0
HSTNUMMER - DN-49203
Other features -
HERSTELLER - DIGITUS
Dimensions - Mounting depth for components max.: 327 mm Product dimensions (H x W x D): 370 x 540 x 400 mm
dimension height - 370 mm
dimension depth - 400 mm
dimension width - 540 mm
dimension weight - 3200 g
Designation - CE+WEEE
name - Wall Mount Cabinet 19 DN-49203
Breite - 0
Width - 540 mm
Accessories included - Mounting kit (screws, cage nuts, washers) 2 x wrench 1 x quick start guide
Laenge - 0
Color - Black
Color - RAL 9005
Storno - Y
Stck_Kart - 1
Stck_Pal - 0
Weight - 9.9 kg
Gewicht - 9.91
Type - Wallmounting
vendpn - DN-49203
