ANSI Lumens (Max.) - 5000
Description - BENQ LH740 5000ANSI FHD LASER 1.6X WIFI OPTIO DLP
Aspect ratio - 16:9
Height - 293.000000
Multimedia - RMS rated power - 15 W
Multimedia - Built-in speaker(s) - Yes
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Placement - Ceiling
Design - Product colour - White
Design - Product type - Standard throw projector
Design - Market positioning - Business
Display - Built-in display - No
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Power consumption (standby), W - 0.5
Power consumption (max.), W - 210
Power consumption, W - 205
Ethernet LAN (RJ-45) ports quantity - 1
Features - On Screen Display (OSD) - Yes
Features - HDCP - Yes
Features - Noise level - 34 dB
Features - Noise level (economic mode) - 29 dB
Manufacturer - BenQ
ManufacturerPartNumber - 9H.JV177.74E
WarrantyInfo -
PeriodofWarranty - 5 Y
Speaker power, W - 1 x 15
GTIN - 4718755098505
HDMI ports quantity - 2
Length - 397.000000
IP classification - IP6X
Cable lock slot - Kensington
Category - Data Projectors
Keystone correction, horizontal, ° - +/- 40
Keystone correction, vertical, ° - +/- 40
Contrast ratio (typical) - 3000000:1
LongDesc - Direct Connection to BenQ QOTA CloudThe enhanced RJ45 LAN port enabling seamless connection to the BenQ QOTA cloud. You can receive and install firmware updates directly from the projector without using a PC or USB drive.Seamless System CompatibilitySupport AMX and PJ-Link platforms, ensuring seamless Integration with established room controllers.Manage Every BenQ Device with BenQ DMSMonitor and manage all your BenQ devices through the BenQ Device Management System (DMS) software from your administration computer over your company LAN (DMS Local) — and stay connected even outside the office with the DMS App (DMS Cloud *). Gain complete visibility, centralized control, and seamless access from anywhere.Casting Your Screen WirelesslyEnjoy driver-free wireless casting with seamless support for iOS, Android, and Windows. Display up to Four devices at once with 4-way split screen for effortless collaboration.Displayed exactly as intendedSelecting the right color mode ensures crisper, clearer images compared to a single default mode.Presentation ModeOptimized saturation for clear communication in slides, reports, and meeting content.High Detail ModeSharper contrast for diagrams, code, and blueprints.DICOM Simulation ModeMedical-grade accuracy when displaying digital images, with no loss of detail.*DICOM Simulation mode is intended for training purposes only and not for medical diagnostic use.High Reliability, Easy MaintenanceLaser Phosphor delivers up to 30,000 hours of reliable brightness with no lamp replacement. Durable, efficient, and mercury-free for a more eco-friendly workplace.Big Zoom for Flexible InstallationThe 1.6X big zoom feature offers a wide range of throw distances to significantly increase installation flexibility for diverse mounting options in various public display scenarios.Flexible Installation & ConnectivityExperience seamless connectivity with our LH740 projector featuring two HDMI ports and two USB ports. It supports external Wi-Fi Screen Casting (e.g. QP30) and Wi-Fi RJ45 adapters (e.g. 5201BS).
LongProductName - LH740 5000AL 1080P Laser Meeting Room Projector
LongSummaryDescription - BenQ LH740. Projector brightness: 5000 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20.911 - 32.624 mm, Aperture range (F-F): 2.5 - 3.26. Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 1080p, Video colour modes: DICOM simulation mode, Presentation, Vivid. Serial interface type: RS-232, HDMI version: 1.4a
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 210 W
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power source - AC
Dimensions W x D x H, mm - 279.2 x 224.8 x 120.5
Throw ratio - 1.4 - 2.24
Lens system - Aperture range (F-F) - 2.5 - 3.26
Lens system - Focus - Manual
Lens system - Throw ratio - 1.4~2.24
Lens system - Zoom ratio - 1.6:1
Lens system - Focal length range - 20.911 - 32.624 mm
Lens system - Offset - 113%
Lens system - Zoom capability - Yes
Packaging content - Remote control included - Yes
Packaging content - Manual - Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, HDMI
Title - BenQ LH740 Standard throw projector 5000 ANSI lumens DLP 1080p (1920x1080) 3D White
Width - 168.000000
Brand - BenQ
BrandPartCode - 9H.JV177.74E
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4a
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 Type-A ports quantity - 2
Native resolution - FULL HD (1920x1080)
ProductName - LH740
Projection size, " - 40 - 145
Projection technology - DLP
Projector - Horizontal scan range - 15 - 135 kHz
Projector - Keystone correction, vertical - 40°
Projector - Keystone correction, horizontal - 40°
Projector - Contrast ratio (typical) - 3000000:1
Projector - Native aspect ratio - 16:9
Projector - Projection technology - DLP
Projector - Projector native resolution - 1080p (1920x1080)
Projector - Projector brightness - 5000 ANSI lumens
Projector - Number of colours - 1.07 billion colours
Projector - Vertical scan range - 23 - 120 Hz
Display number of colours - 1.07 B

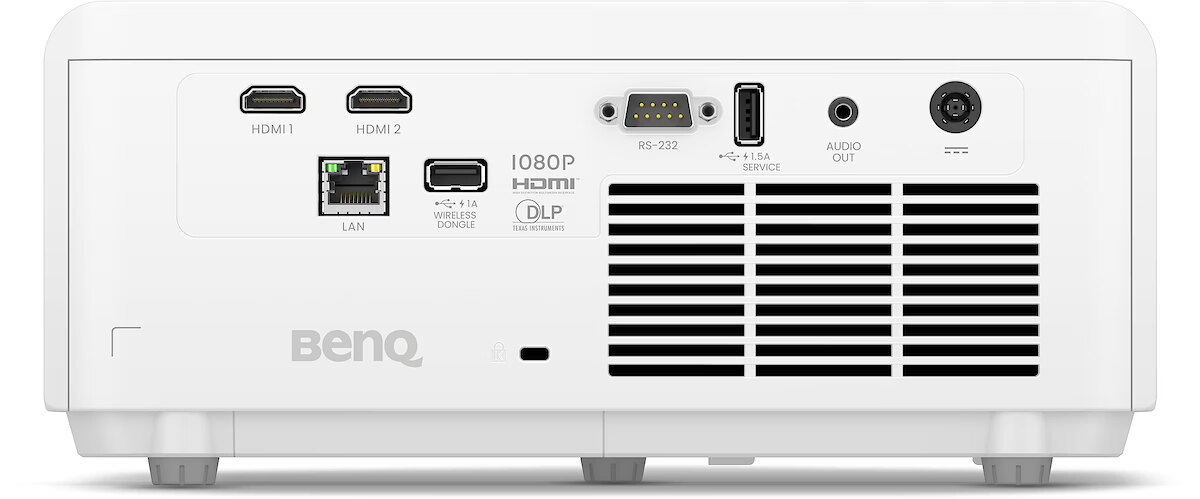

Connections - Ethernet (RJ-45)
Connections - Audio (3.5mm)
Connections - HDMI
Connections - IR Receiver
Connections - RS232
Connections - USB-A
ShortSummaryDescription - BenQ LH740, 5000 ANSI lumens, DLP, 1080p (1920x1080), 3000000:1, 16:9, 1.07 billion colours
Weight - 5.180000
Weight, g - 3300
Weight & dimensions - Height - 224.8 mm
Weight & dimensions - Depth - 120.5 mm
Weight & dimensions - Width - 279.2 mm
Weight & dimensions - Weight - 3.3 kg
Network - Wi-Fi - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Smart TV - No
Noise level, dB - 32
Contents -
- QSG
- Remote Control (RCA011)
- AAA Battery x2
- HDMI cable (1.5m)
- Power Adapter (1.8m)
- Power Cord (1m)
- Warranty card (by Region)
URL - https://www.benq.eu/en-eu/business/projector/lh740.html
Video - Video colour modes - DICOM simulation mode, Presentation, Vivid
Video - Full HD - Yes
Video - 3D - Yes
Video - Supported video modes - 1080p
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Built-in speakers - Yes
Light source - Laser
Light source - Service life of light source (economic mode) - 30000 h
Light source - Light source type - Laser
Light source - Service life of light source - 20000 h
Service life of lamp, h - 20000 / 30000
