DisplayPortversion -
Category 1 - Displays
Category 2 - Monitore
AMDFreeSync - No
ARTIKEL1 - TF1634MC-B8X 15.6IN IPS
ARTIKEL2 - 1920X1080 700:1 450CD
Aspectratio -
Responsetime - 25 ms
Responsetimemeasurementtype - GTG (Gray to Gray)
Heightwithoutstand - 230.5 mm
Heightwithstand - 230.5 mm
Heightadjustment -
Headphoneoutputs -
Colourgamut -
Colourgamutstandard -
OperatingrelativehumidityHH -
OperatingtemperatureTT -
Multimedia -
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
DisplayPortoutquantity -
DisplayPortoutversion -
DisplayPortsquantity - 1
Design -
Design - Front bezel colour - Black
Design - Product colour - Black
Design - Glass thickness - 2.4 mm
EAN - 4948570118342
EANCode - 4948570118342
EAN_code - 4948570118342
Displaysurface -
Display -
Display - Response time - 25 ms
Display - Maximum refresh rate - 60 Hz
Display - Screen shape - Flat
Display - Display brightness - 405 cd/m²
Display - Display brightness (typical) - 450 cd/m²
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - Display diagonal - 39.6 cm (15.6")
Display - Display diagonal (metric) - 39.5 cm
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 84 kHz
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Multi-user
Display - Touchscreen - Yes
Display - Touch technology - Multi-touch
Display - Contrast ratio (typical) - 700:1
Display - Viewable size, horizontal - 34.4 cm
Display - Viewable size, vertical - 19.4 cm
Display - Surface hardness - 7H
Display - Pixel pitch - 0.179 x 0.179 mm
Display - Native aspect ratio - 16:9
Display - Response time measurement type - GTG (Gray to Gray)
Display - Display number of colours - 16.2 million colours
Display - Panel type - IPS
Display - Number of simultaneous touchpoints - 10
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displaybezeltechnology -
Screenshape - Flat
Displaybrightnesstypical - 450 cd/m²
Displayresolution - 1920 x 1080 pixels
Displaytechnology - LED
Powerconsumptionoff - 0.3 W
Powerconsumptionstandby - 0.6 W
EnergyconsumptionSDRper1000hou - 12.4 kWh
Powerconsumptiontypical - 18 W
EnergyefficiencyclassHDR - Not available
EnergyefficiencyclassSDR - F
Energyefficiencyscale -
Ergonomics -
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Wall mountable - Yes
Ergonomics - Number of OSD languages - 7

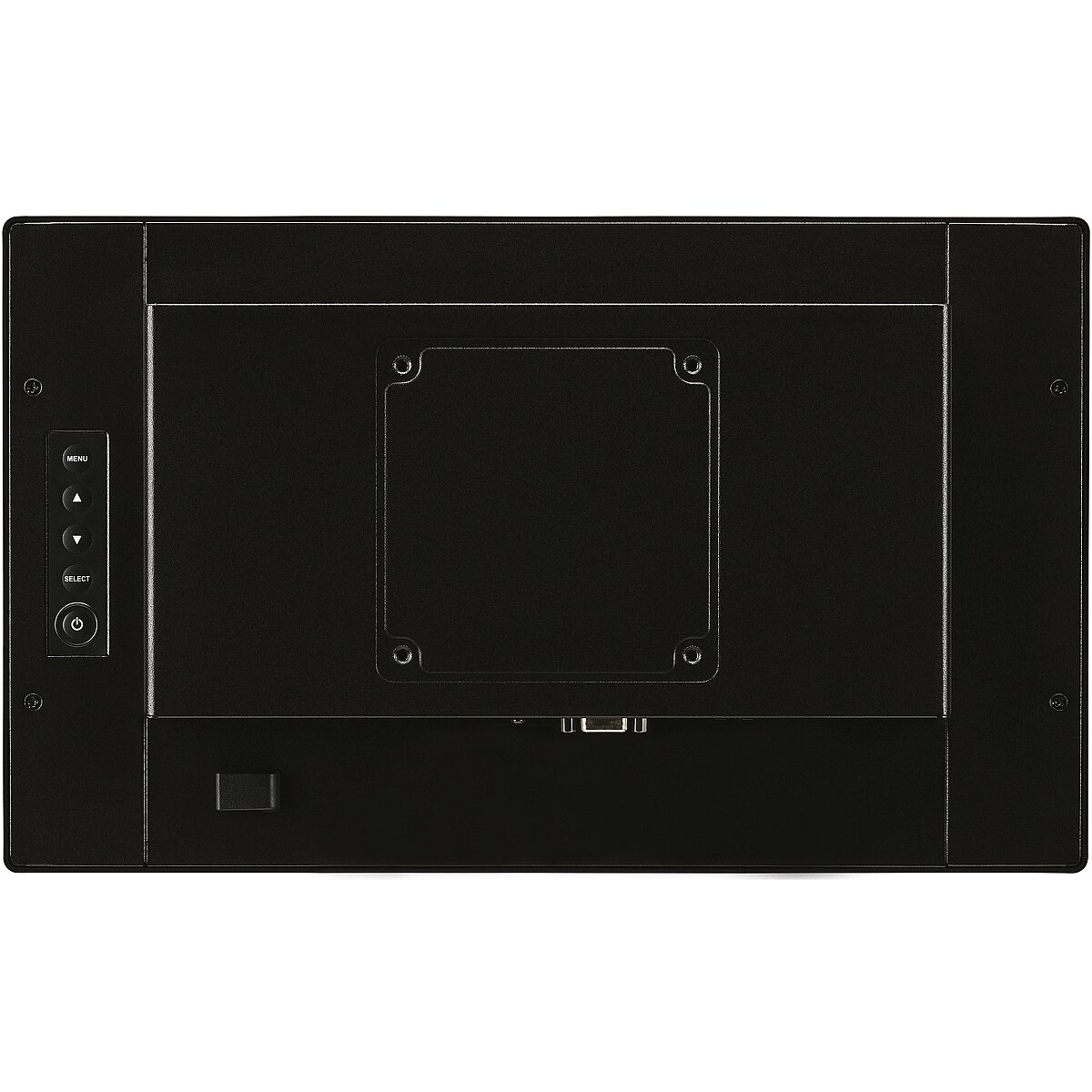

Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
EthernetLAN -
Flickerfreetechnology -
Backlighttype -
Power - Energy consumption (SDR) per 1000 hours - 12.4 kWh
Power - Energy efficiency class (SDR) - F
Headphoneconnectivity -
Manufacturer - Iiyama
Manufacturer - iiyama
Manufacturer_code - TF1634MC-B8X
Warranty - 36 months
Warrantyandmisc -
WarrantyInfo -
Numberofspeakers -
Audiooutput -
Audioinput -
Responsetimefast -
Fastcharging -
Quickstartguide - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570118342

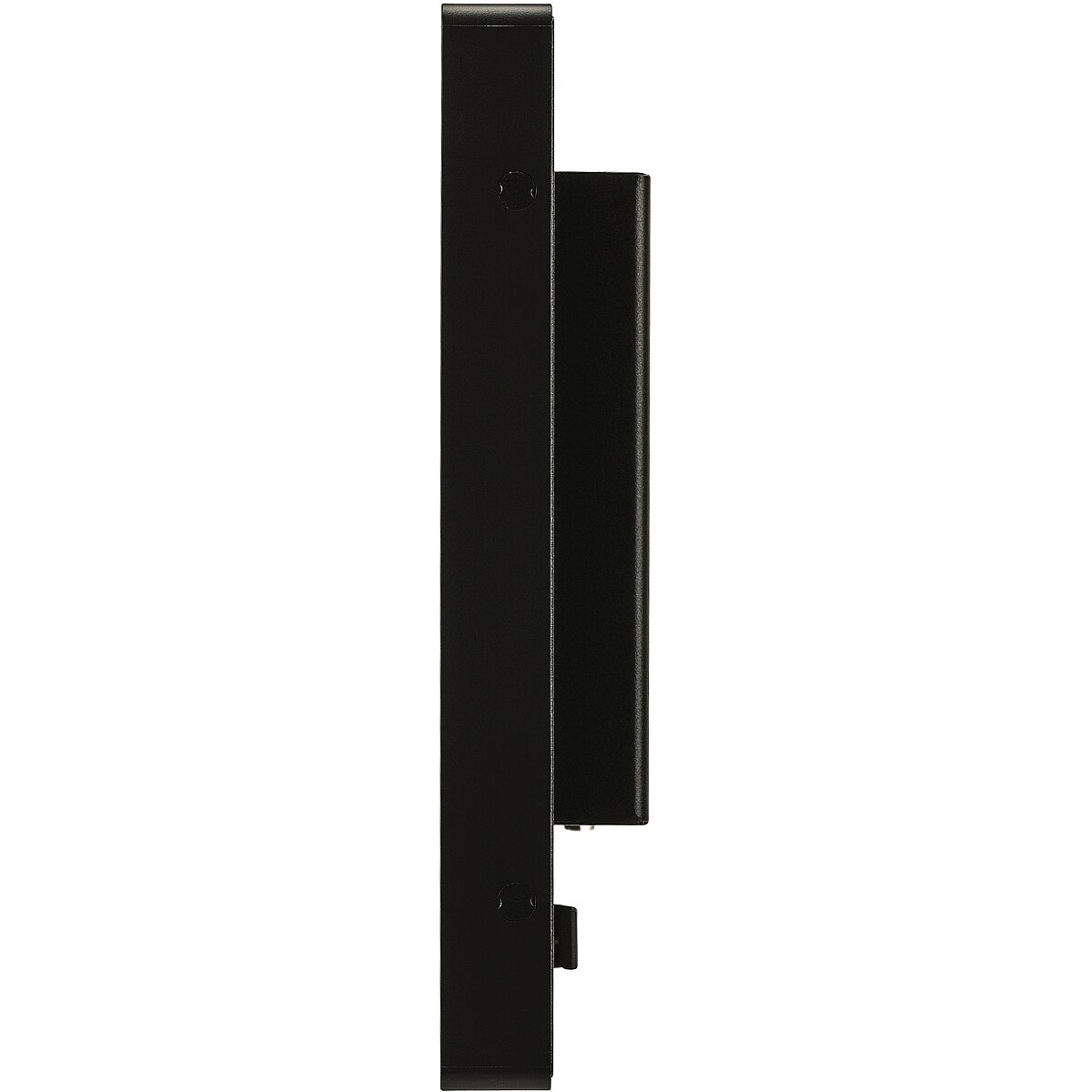

Depthwithoutstand - 46 mm
Depthwithstand - 46 mm
Hazerate -
HDCP - Yes
HDMI - Yes
HDMIportsquantity - 1
HDMIversion -
HDtype - Full HD
Headphoneout -
HighLights -
Hoehe - 0.15
Horizontalscanrange - 30 - 84 kHz
HSTNUMMER - TF1634MC-B8X
InfraredIRsensor -
BuiltinUSBhub -
Touchscreen - Yes
Cablelockslot -
Category - Computer Monitors
Category_1 - Monitors and TV
Category_2 - Public Displays
ACinputfrequency -
ACinputvoltage -
Other features - Active display area (W x H) - 344.2 x 193.6 mm
Other features - Compliance certificates - CE, cULus, EAC, REACH, RoHS, WEEE
Other features - Display viewable area (HxV) - 344.2 x 193.5 mm
Other features - Depth - 46 mm
Other features - Touch method - stylus, finger, glove (latex)
Other features - User controls - picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Other features - Placement supported - Horizontal/Vertical
Other features - Width - 381 mm
Other features - AC adapter included - Yes
Other features - Brightness - 405 cd/m²
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - International Protection (IP) code - IP65
Other features - Control panel - Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Other features - Height - 230.5 mm
Other features - Packaging content - AC adapter
Other features - Weight - 2 kg
Feetcolour -
Bundledsoftware -
Contrastratiotypical - 700:1
Contrastratiodynamic -
LEDbacklight -
Logistics data - Pallet net height - 9.7 cm
Logistics data - Pallet net length - 20.4 cm
Logistics data - Pallet net width - 11.5 cm
Logistics data - Products per pallet - 78 pc(s)
Logistics data - Harmonized System (HS) code - 85285210
LongDesc -
LongDesc - The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
LongProductName - 15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function
LongSummaryDescription - iiyama ProLite TF1634MC-B8X. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
LowBlueLighttechnology -
Power -
Power - Power consumption (standby) - 0.6 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (typical) - 18 W
Power - Energy efficiency class (HDR) - Not available
Power - AC adapter output voltage - 12 V
Power - Power supply type - External
Powersupplytype - External
Maximumrefreshrate - 60 Hz
Powerconsumptionmax -
Adjustableheightmax -
HERSTELLER - IIYAMA CONSIGNMENT
ManufDatasheet - https://www.tdbaltic.ee/leaflets/IIYAMA/TF1634MC-B8X.pdf
Megapixelapprox -
MPN - TF1634MC-B8X
Nativeaspectratio - 16:9
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Detachablestand -
Antiglarescreen -
Remotelyoperated -
NVIDIAGSYNC - No
OnScreenDisplayOSD - Yes
Tiltanglerange -
Tiltadjustment -
Packageheight - 365 mm
Packagingdata -
Packaging data - Package height - 365 mm
Packaging data - Package depth - 290 mm
Packaging data - Package width - 455 mm
Packaging data - Package weight - 3.9 kg
Packagedepth - 290 mm
Packagewidth - 455 mm
Packageweight - 3.9 kg
Packagetype -
Packagingcontent -
Packaging content - Quick start guide - Yes
Packaging content - Cables included - AC, USB, HDMI, DisplayPort
Supportedgraphicsresolutions -
Swivelling -
Swivelanglerange -

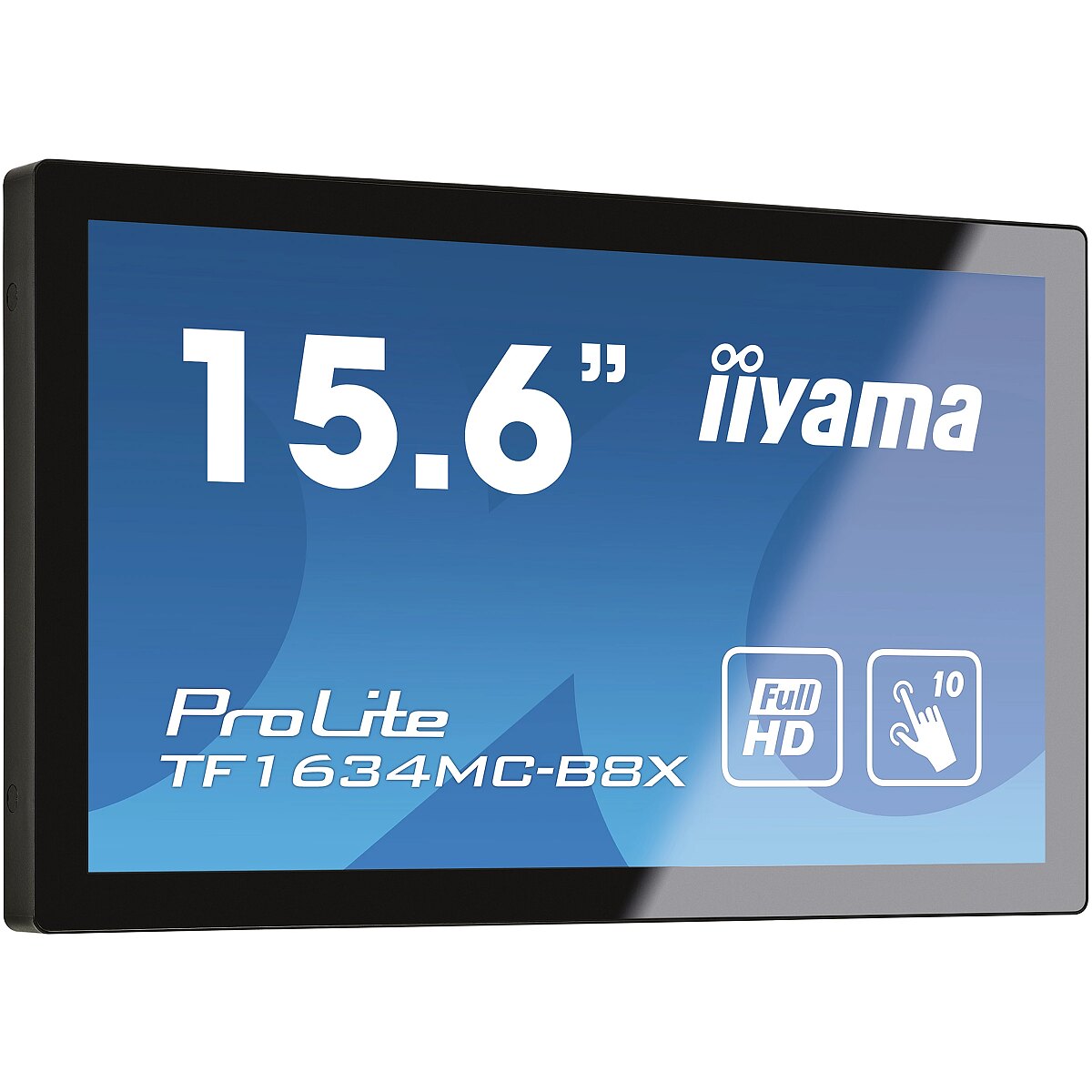

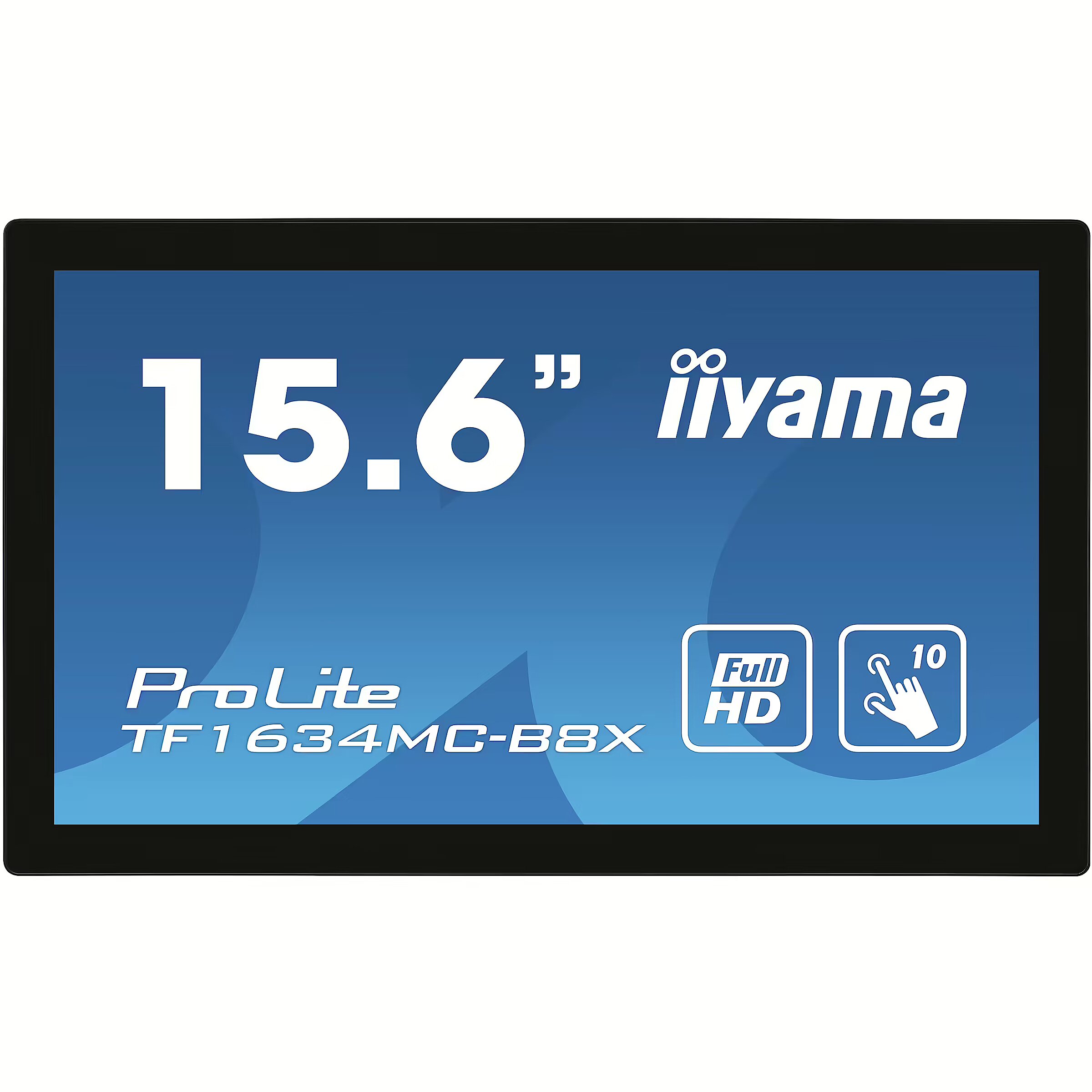

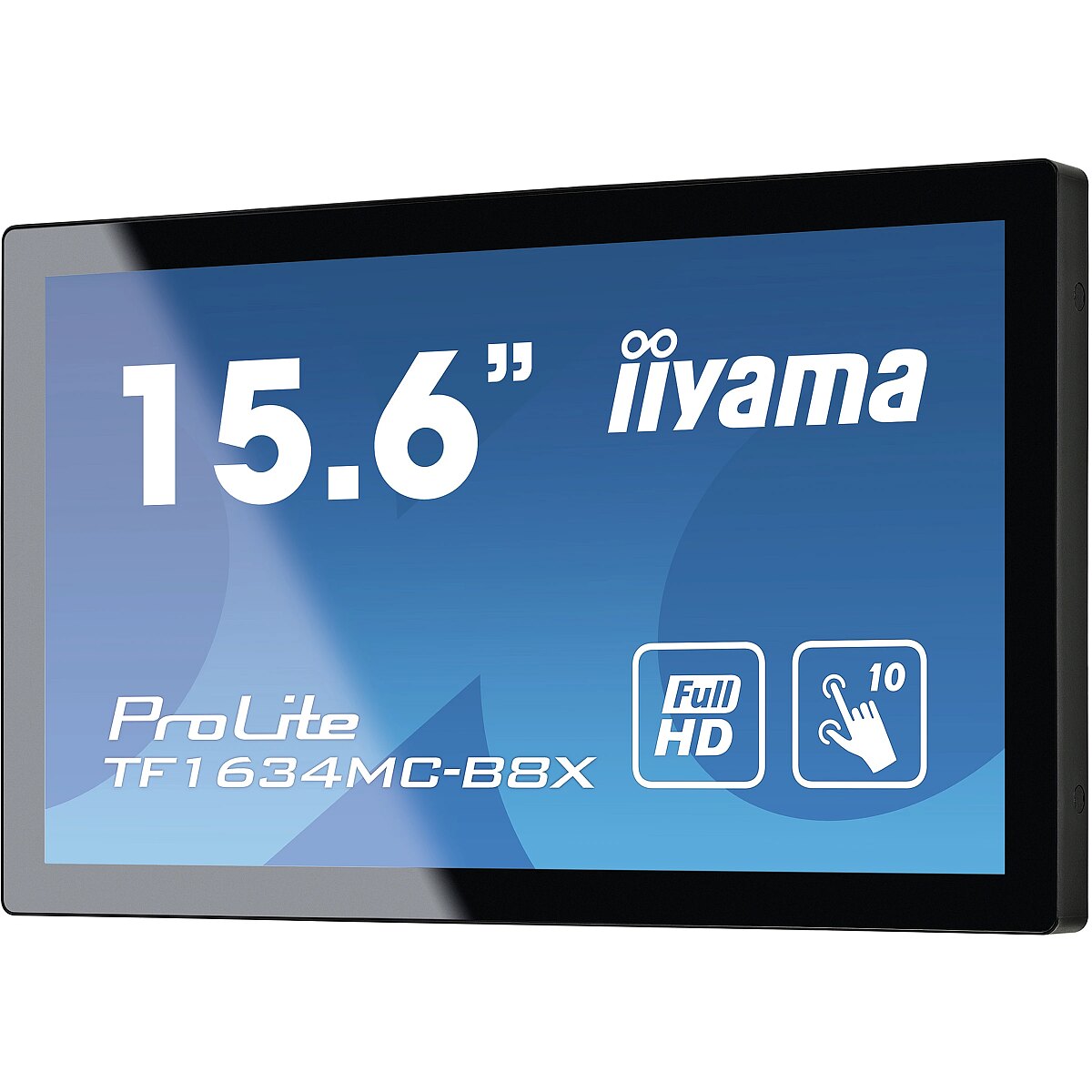

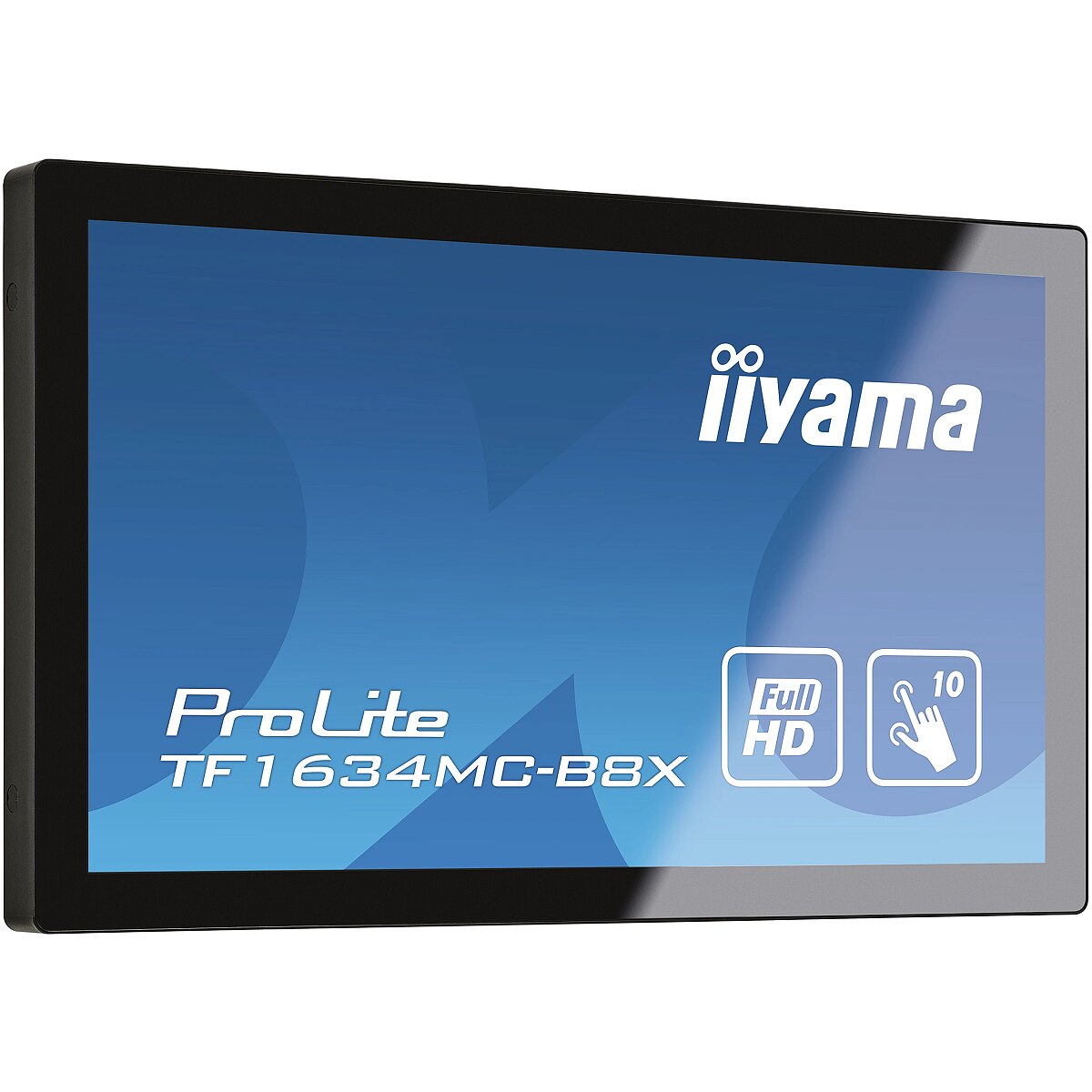

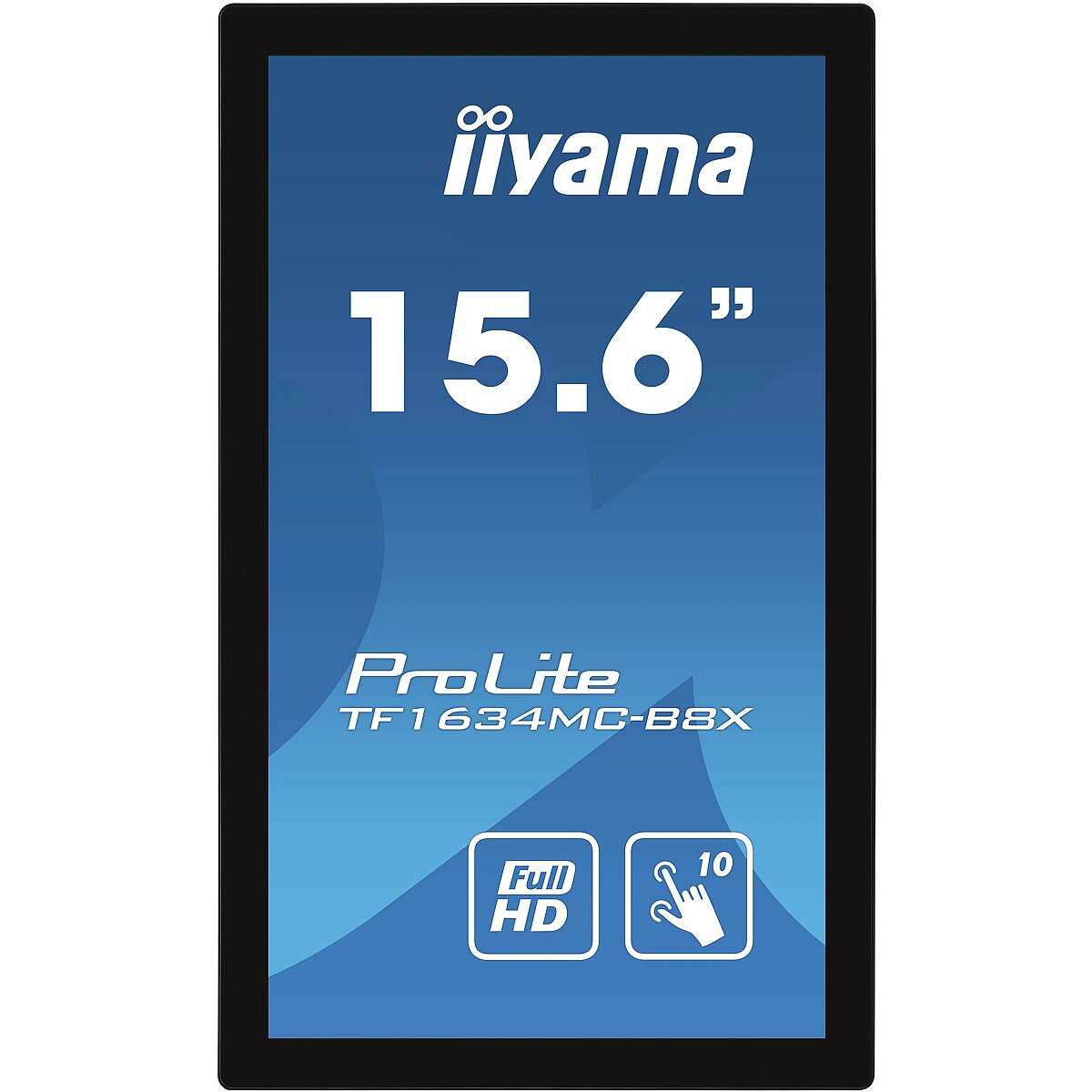

Title - iiyama ProLite TF1634MC-B8X computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Name - iiyama TF1634MC-B8X, Public Display (black, Full HD, 60 Hz, IP65)
Name - IIYAMA 39.5cm (15.6") TF1634MC-B8X 16:9 M-Touch HDMI+DP
Surfacehardness - 7H
Viewablesizehorizontal - 34.4 cm
Viewablesizediagonal -
Viewinganglehorizontal - 178°
Viewablesizevertical - 19.4 cm
Pivot -
Pivotangle -
Pixeldensity -
Pixelpitch - 0.179 x 0.179 mm
Breite - 0.32
Widthwithoutstand - 381 mm
Widthwithstand - 381 mm
Brand - iiyama
BrandPartCode - TF1634MC-B8X

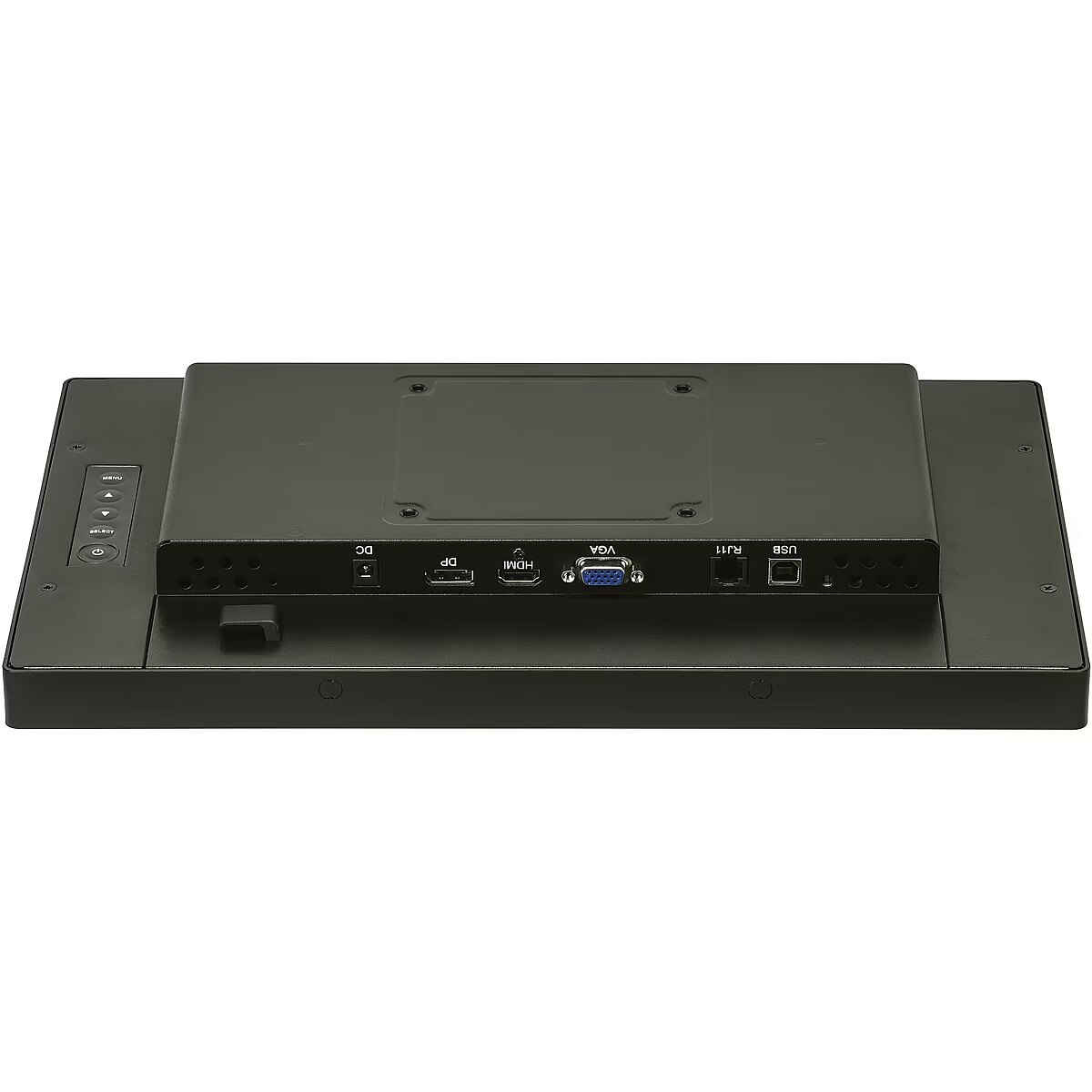

Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Portsinterfaces -
ProdDesc - iiyama ProLite TF1634MC-B8X - LED monitor - 15.6" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 450 cd / m² - 700:1 - 25 ms - HDMI, VGA, DisplayPort - black, matte
ProductPicture - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_1.jpg
Productcolour - Black
ProductHighLights -
- Touchscreen 39.6 cm (15.6") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 60 Hz 25 ms 450 cd/m² 700:1
- F 12.4 kWh 18 W
Productcondition - Original
ProductPicture4 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_5.jpg
ProductPicture8 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_9.jpg
ProductName - TF1634MC-B8X
ProductPicture1 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_4.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_6.jpg
ProductPicture6 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_7.jpg
ProductPicture7 - https://www.tdbaltic.ee/images/products/IIYAMA/TF1634MC-B8X_8.jpg
Marketpositioning -
RMSratedpower -
Displaydiagonal - 39.6 cm (15.6")
Displaydiagonalmetric - 39.5 cm
Displaynumberofcolours - 16.2 million colours
StoragerelativehumidityHH -
ShortSummaryDescription - iiyama ProLite TF1634MC-B8X, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LED, 25 ms, Black
Laenge - 0.64
Panelmountinginterface - 100 x 100 mm
Paneltype - IPS
Colourdepth -
SRGBcoveragetypical -
Storno - Y
Stck_Kart - 1
Stck_Pal - 5
Weight - 3,70
Weight - 3.6
Gewicht - 3.84
Weightwithoutstand - 2 kg
Weight & dimensions - Height (without stand) - 230.5 mm
Weight & dimensions - Height (with stand) - 230.5 mm
Weight & dimensions - Depth (without stand) - 46 mm
Weight & dimensions - Depth (with stand) - 46 mm
Weight & dimensions - Width (without stand) - 381 mm
Weight & dimensions - Width (with stand) - 381 mm
Weight & dimensions - Weight (without stand) - 2 kg
Weight & dimensions - Weight (with stand) - 2 kg
Weightdimensions -
Weightwithstand - 2 kg
Network -
Sustainability - Sustainability certificates - ErP
URL - https://iiyama.com/
USBhubversion -
USBPowerDeliveryUSBPD -
USBTypeAdownstreamportsquantit -
NumberofUSBTypeBupstreamportsq -
USBTypeCDisplayPortAlternateMo -
Performance -
Performance - Palm rejection - Yes
Operationalconditions -
Verticalscanrange -
VESAmounting - Yes
Builtincamera - No
BuiltinKVMswitch -
Builtinmicrophone - No
Builtinspeakers -
Cablesincluded - AC, USB, HDMI, DisplayPort
Viewinganglevertical - 178°
